Description

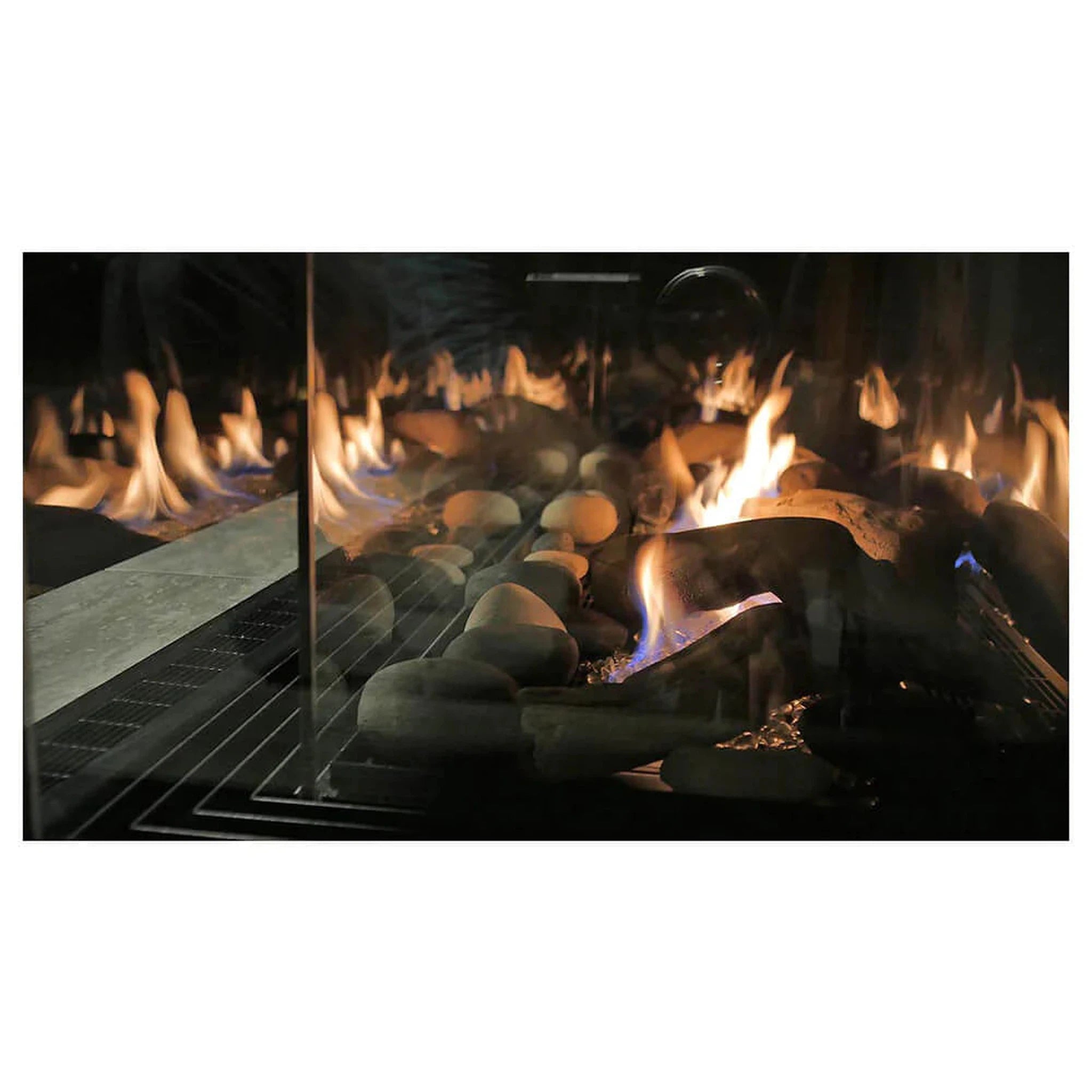

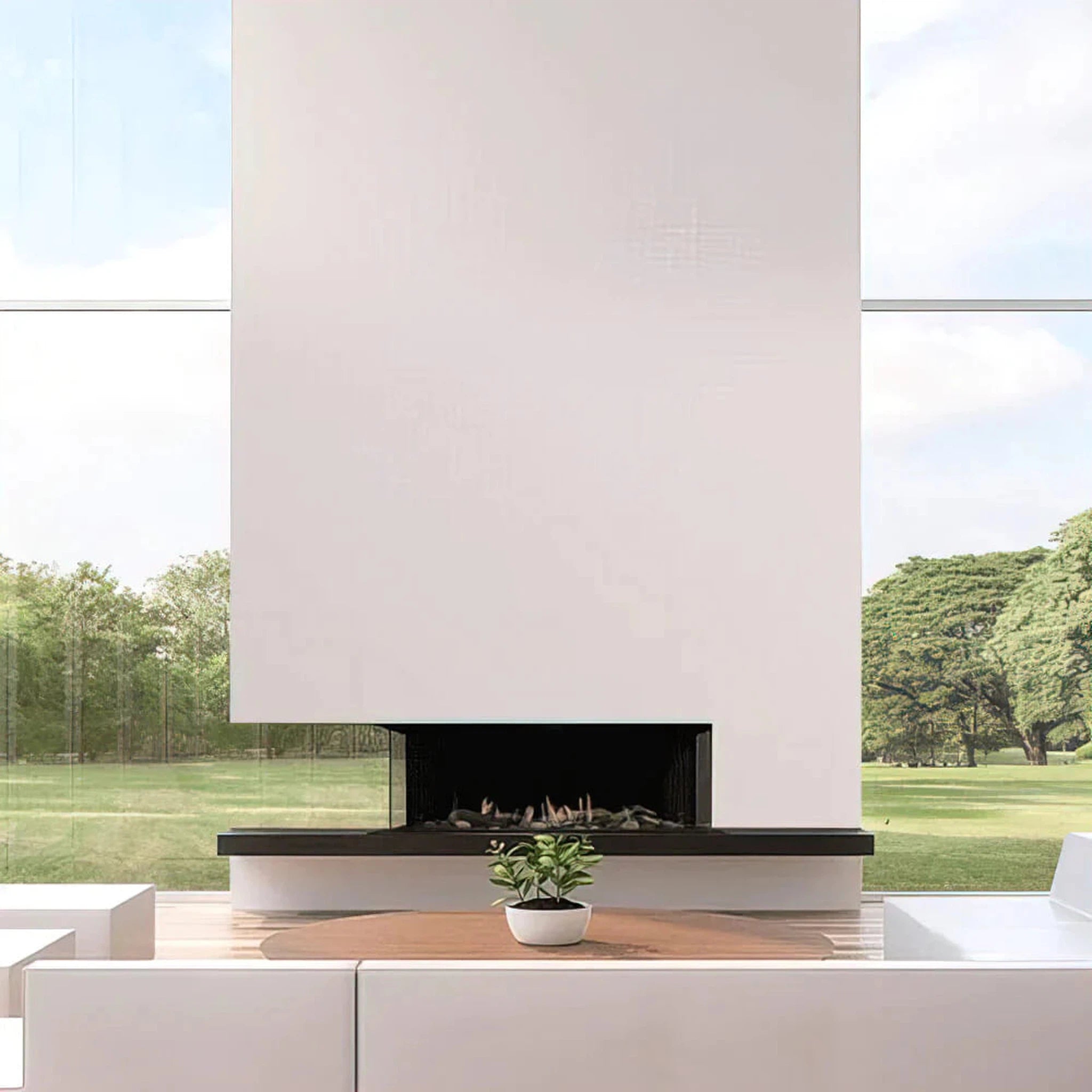

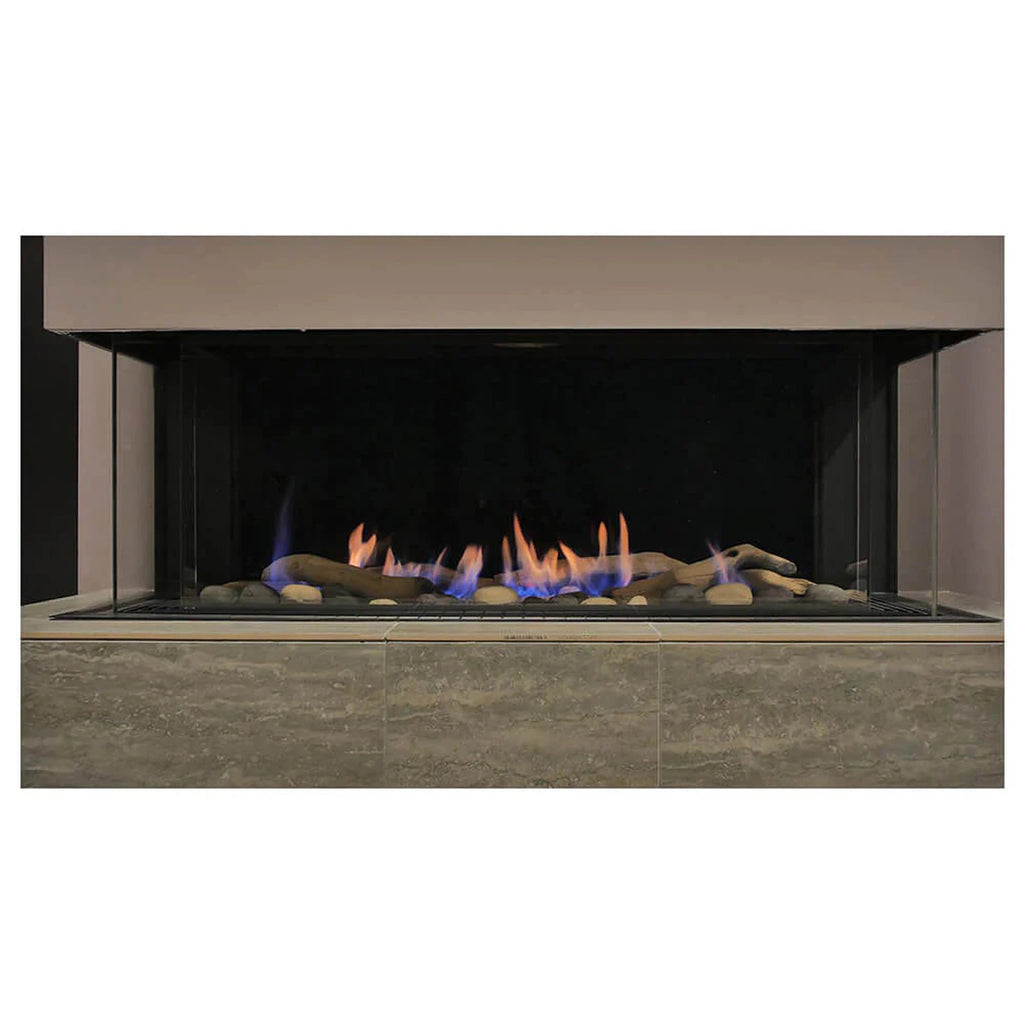

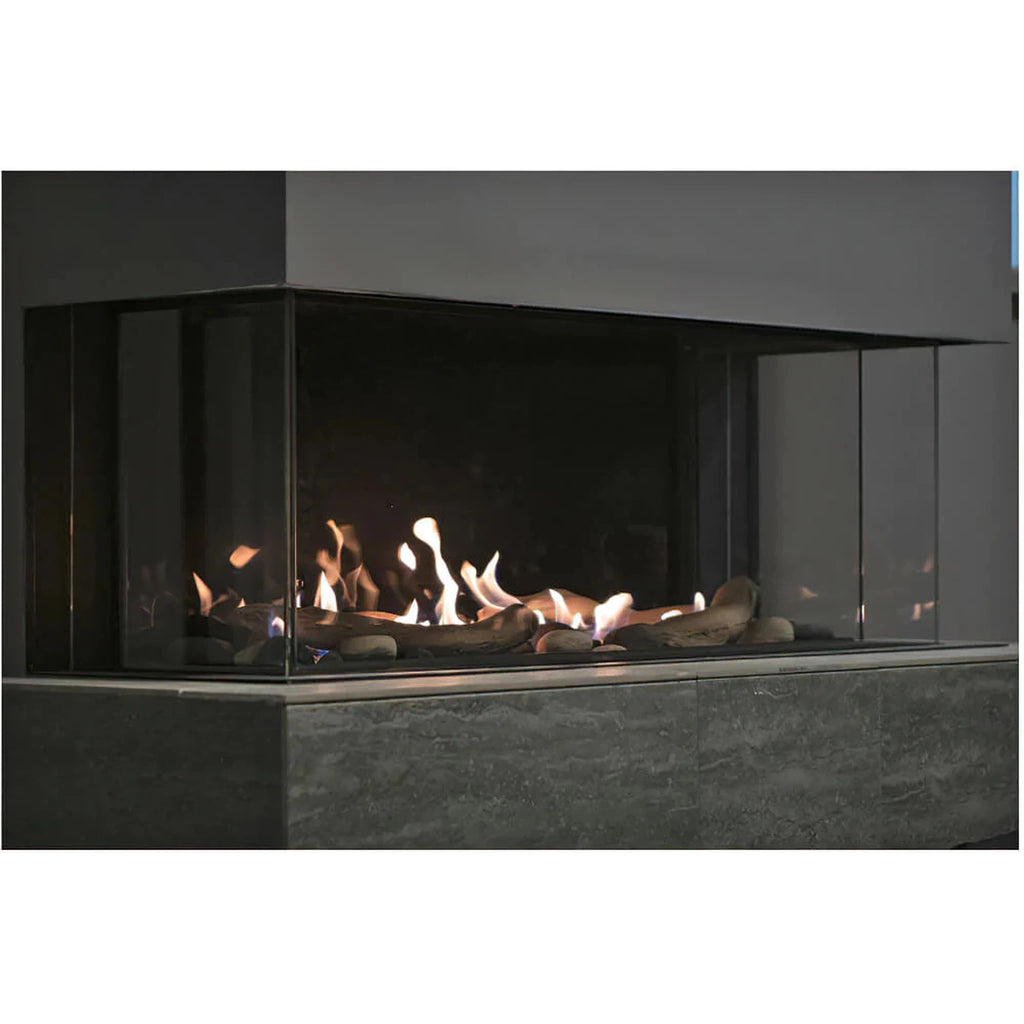

Sierra Flame Toscana - Three Sided Fireplace
The Toscana three sided linear gas fireplace uses radiant thermal convention technology. This allows heat from the fire to naturally enter the room using air flow pulled in from the room in combination with variable fans that then propel the convention heated air though the double glass channel.
Screen free and cool touch with aesthetic and saftey in mind.
Features
- Three Sided Bay Fronts
- No Gaps, No Louvres, No Screens
- No Concrete Board Required
- Able to Finish with Combustible around fireplace
- Clear View: double wall eliminates need for safety screen
- Easy Clean, no technican required to clean the glass viewing area
- Includes a media kit
- No assembly required
| Model | BTU’s | Vent | Height | Width | Depth | Viewing Area | Side View Area | ||||||
| Toscana 38″ | Natural Gas | Propane | Actual | Framing | Actual | Framing | Actual | Framing | Height | Width | Height | Width | |
| Hi 24,500 Lo 15,000 |
24,000 14,000 |
Top 5″ & 8″ | 32.71″ | 36.5″ | 42.27″ | 43.25″ | 18.49″ | 19.5″ | 15.28″ | 41″ | 15.28″ | 13.40″ | |
| Toscana 48" | Hi 36,000 Lo 21,000 |
28,500 21,500 |
Top 5″ & 8″ | 32.64″ | 36.5″ | 50.27″ | 51.25″ | 18.49″ | 19.5″ | 15.28″ | 49.21″ | 15.25″ | 13.40″ |
| Toscana 58" | Hi 40,000 Lo 23,000 |
36,000 22,000 |
Top 5″ & 8″ | ||||||||||
Specifications
38 Inches
- Dimensions - 42 2/7"W x 32 5/7"H x 18 1/2"D
- Weight - 270 lbs
48 Inches
- Dimensions - 50 2/7"W x 32 5/7"H x 18 1/2"D
- Weight - 318 lbs
58 Inches
- Dimensions - 60 2/7"W x 32 5/7"H x 18 1/2"D
- Weight - 368 lbs
