Description

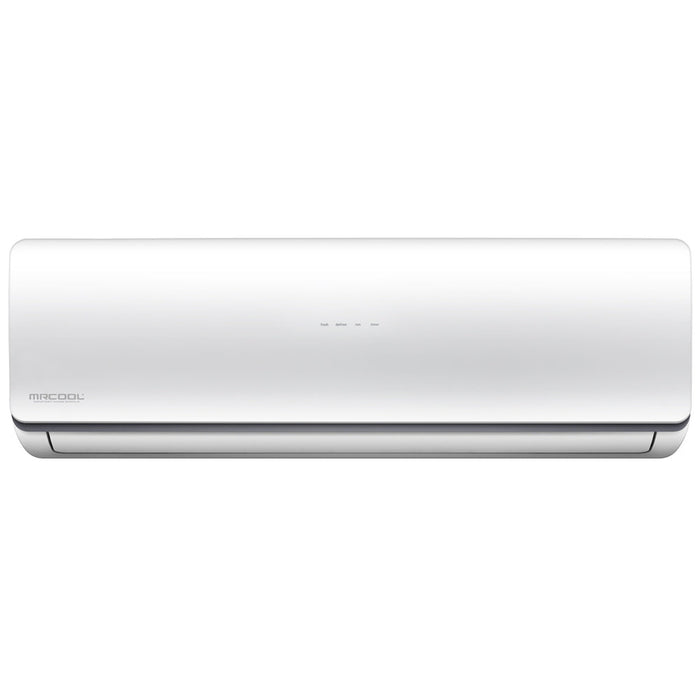

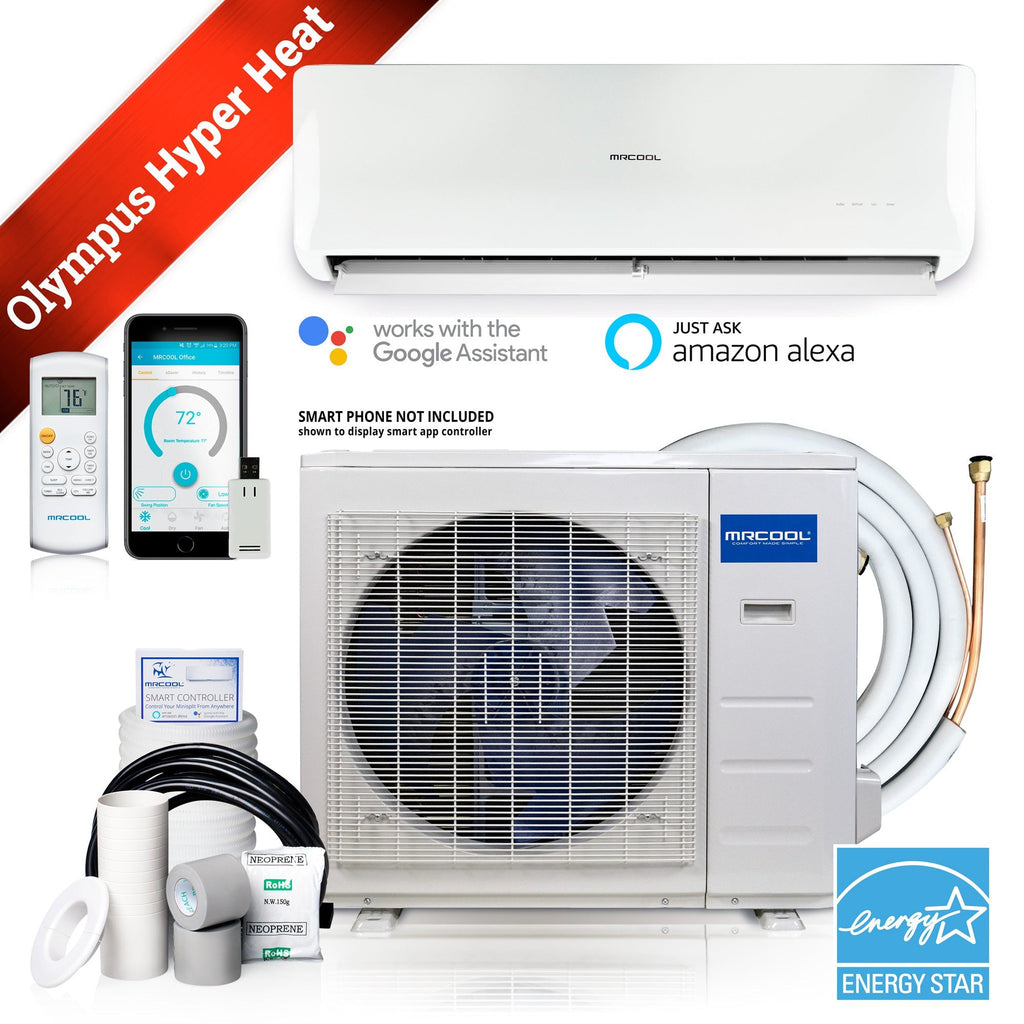

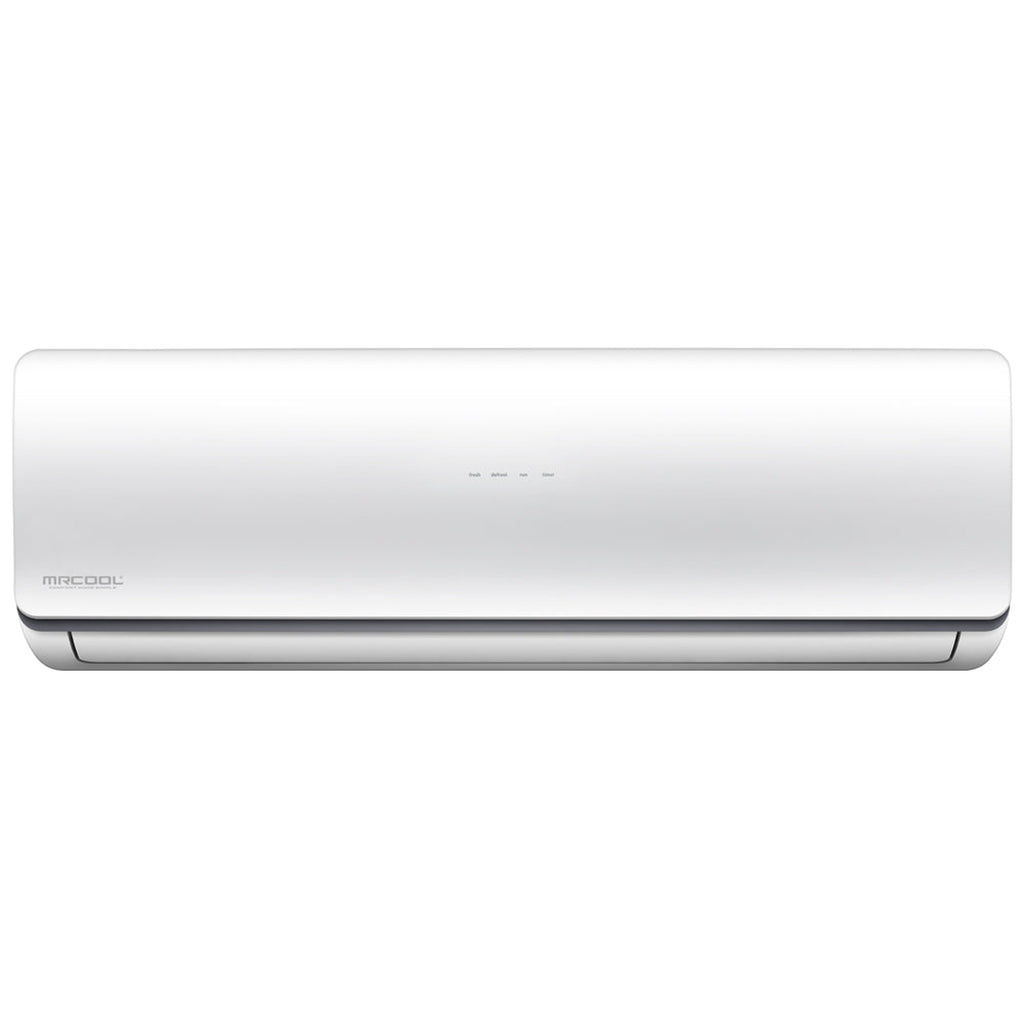

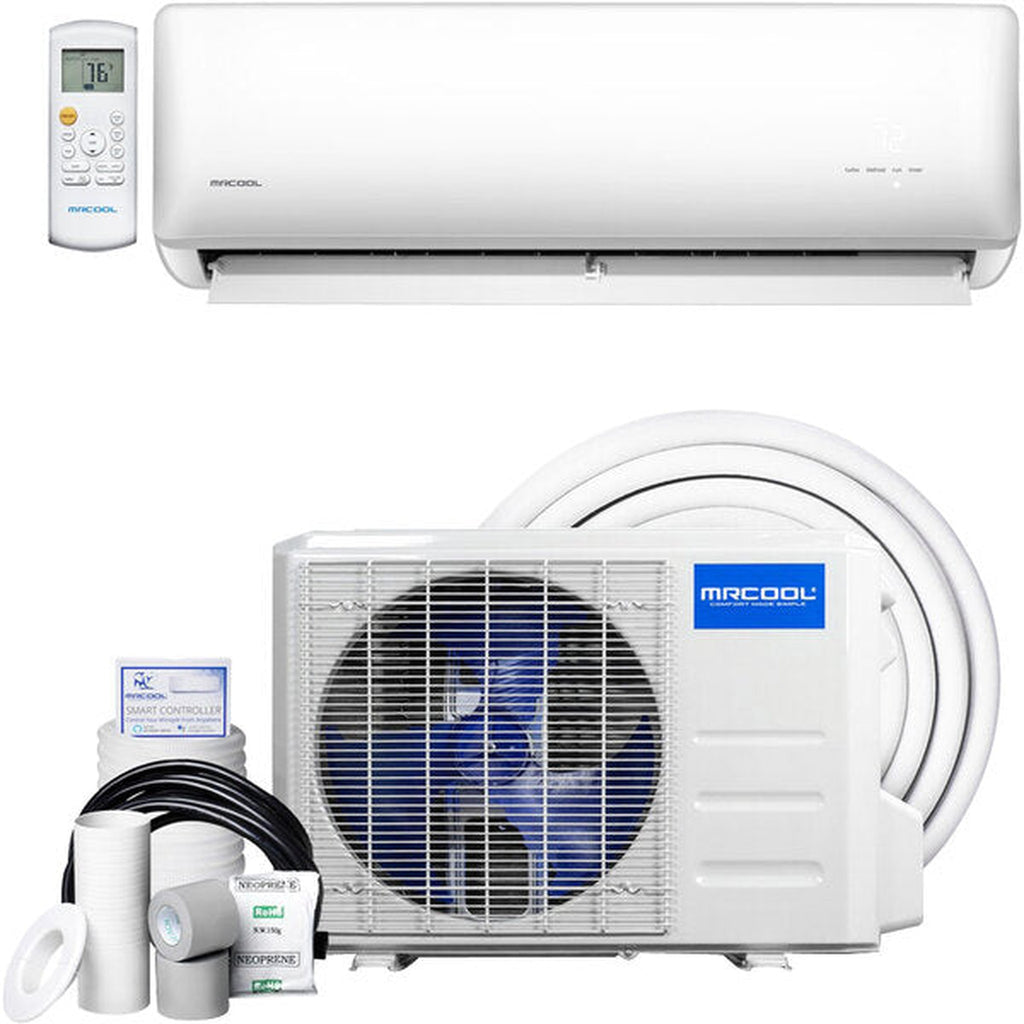

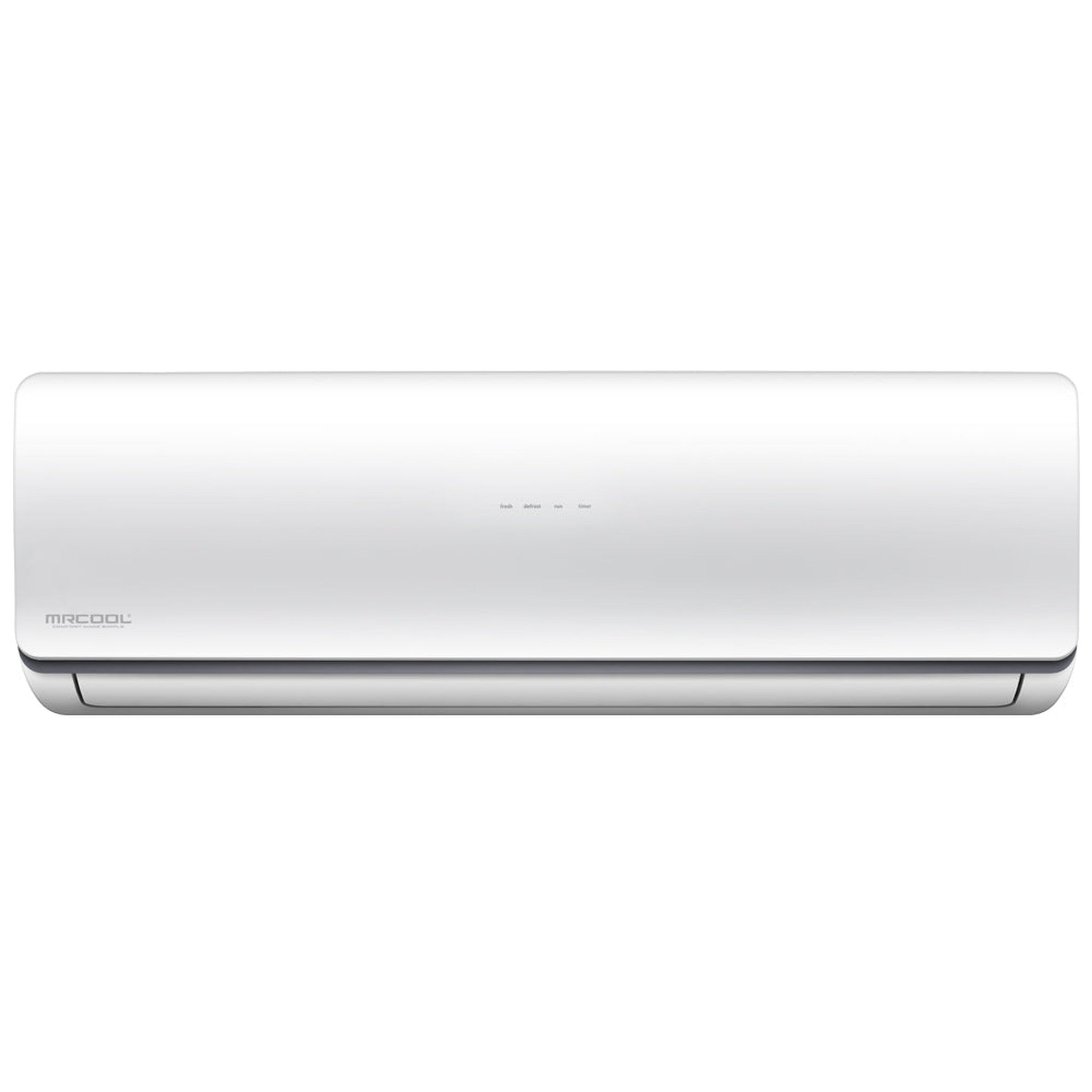

MRCOOL Olympus Hyper Heat Series ductless mini-split heat pump
This system is meant to be installed by a HVAC technician. The MRCOOL Olympus Hyper Heat Series ductless mini-split heat pump is the air comfort system you need to ensure your home stays cost effective, and comfortable all year. This system uses hyper-heat technology to ensure efficient and effective heating performance when outdoor temperatures become bitterly cold. This high quality ductless heat pump is energy efficient, packed with great features, and priced to meet most household budgets. If you need targeted air comfort for a single zone in your home or need more general air conditioning, a MRCOOL Olympus Hyper Heat Series ductless heat pump should be exactly what you've been searching for. After all, shouldn't your home feel legendary. The MRCOOL Olympus Hyper Heat now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.

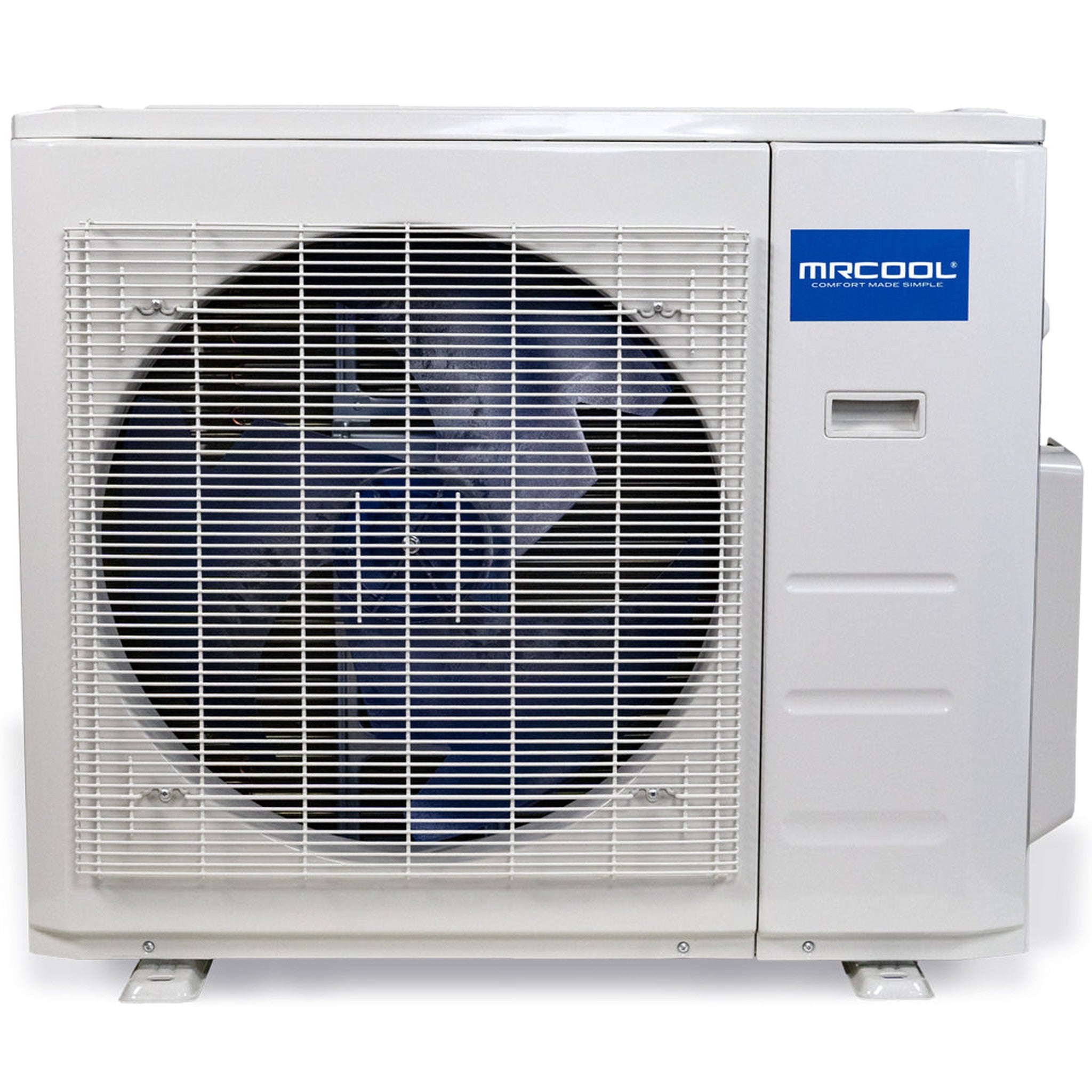

Olympus Hyper Heat 24,000 BTU 2 Ton Ductless Mini Split Air Conditioner and Heat Pump Condenser - 230V/60Hz
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- High efficient 20.5 SEER 11.50 HSPF performance
- R-410A environmentally friendly refrigerant
- Energy Star certified: estimated national average annual operating cooling cost is 148 dollars based on AHRI certificate #204783918
- Inverter variable speed compressor
- The new Olympus Hyper Heat systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
Specifications
|
SEER |
20.5 |
|
EER |
13 |
|
HSPF |
hspf4/hspf5 : 11.5/9.6 |
|
CFM |
2235.29 |
|
COOLING CAPACITY |
24000 BTU |
|
HEATING CAPACITY |
29000 BTU |
|
VOLTAGE |
208-230 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
30 A |
|
MIN CIRCUIT AMPACITY |
20 A |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
91.7 oz |
|
DECIBEL RATING |
60 dBA |
|
INVERTER |
Yes |
|
LINE SET LENGTH |
16ft or 25 |
|
MAX LINESET LENGTH |
164.04 ft |
|
LIQUID LINE FITTING |
1/2 in |
|
LIQUID LINE SIZE |
3/8 in |
|
SUCTION LINE FITTING |
3/4 in |
|
SUCTION LINE SIZE |
5/8 in |
|
CONDENSER FAN MOTOR RPM |
810/700/500 |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR COMPLIANT |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
|
REGISTERED PARTS WARRANTY |
5-year |
|
REGISTERED COMPRESSOR WARRANTY |
7-year |
|
REGISTERED REMOTE WARRANTY |
1-year |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
No |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
138.89 lbs |
|
GROSS DEPTH |
16.69 in |
|
GROSS HEIGHT |
34.45 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
151.02 lbs |
|
FREIGHT CLASS |
125 |
