Description
DIY 4TH GEN E STAR DUCTLESS MINI SPLIT HEAT PUMP COMPLETE SYSTEM, ENERGY STAR, 4TH GEN

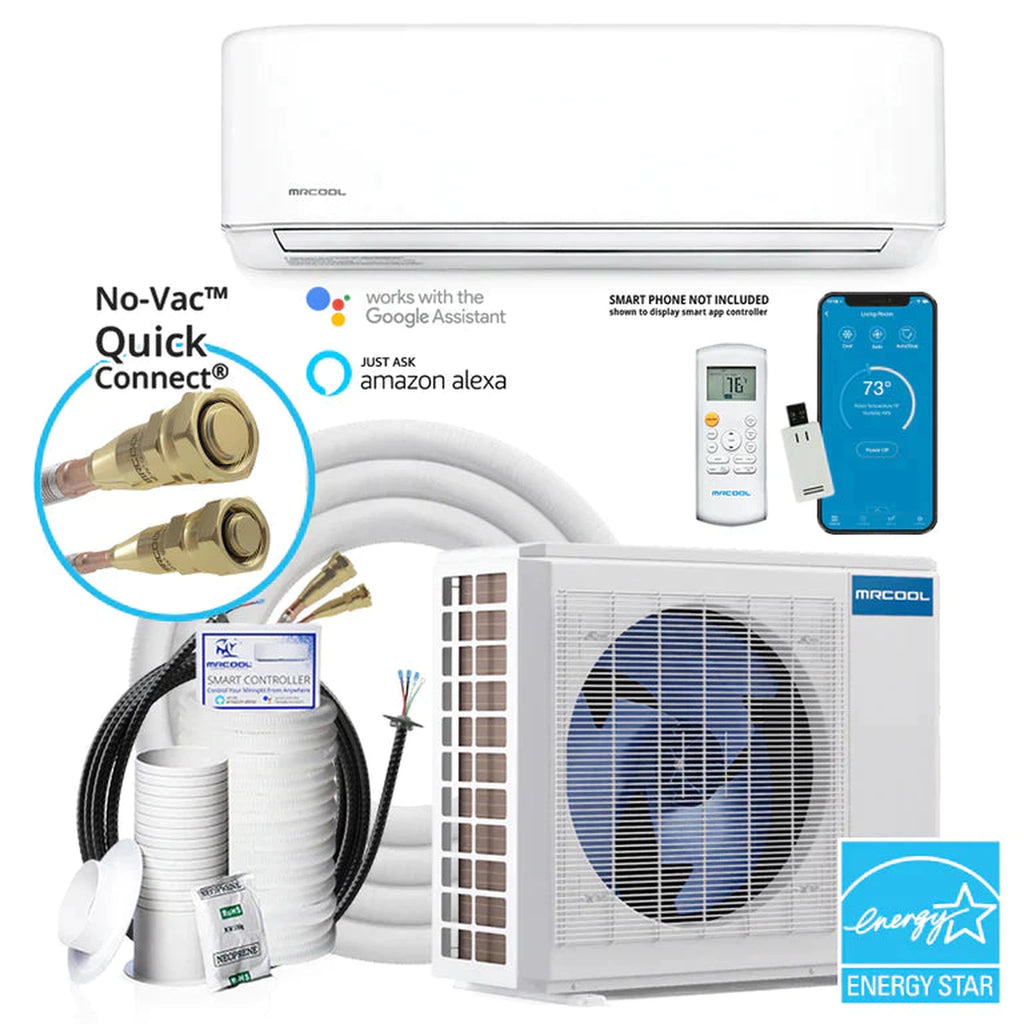

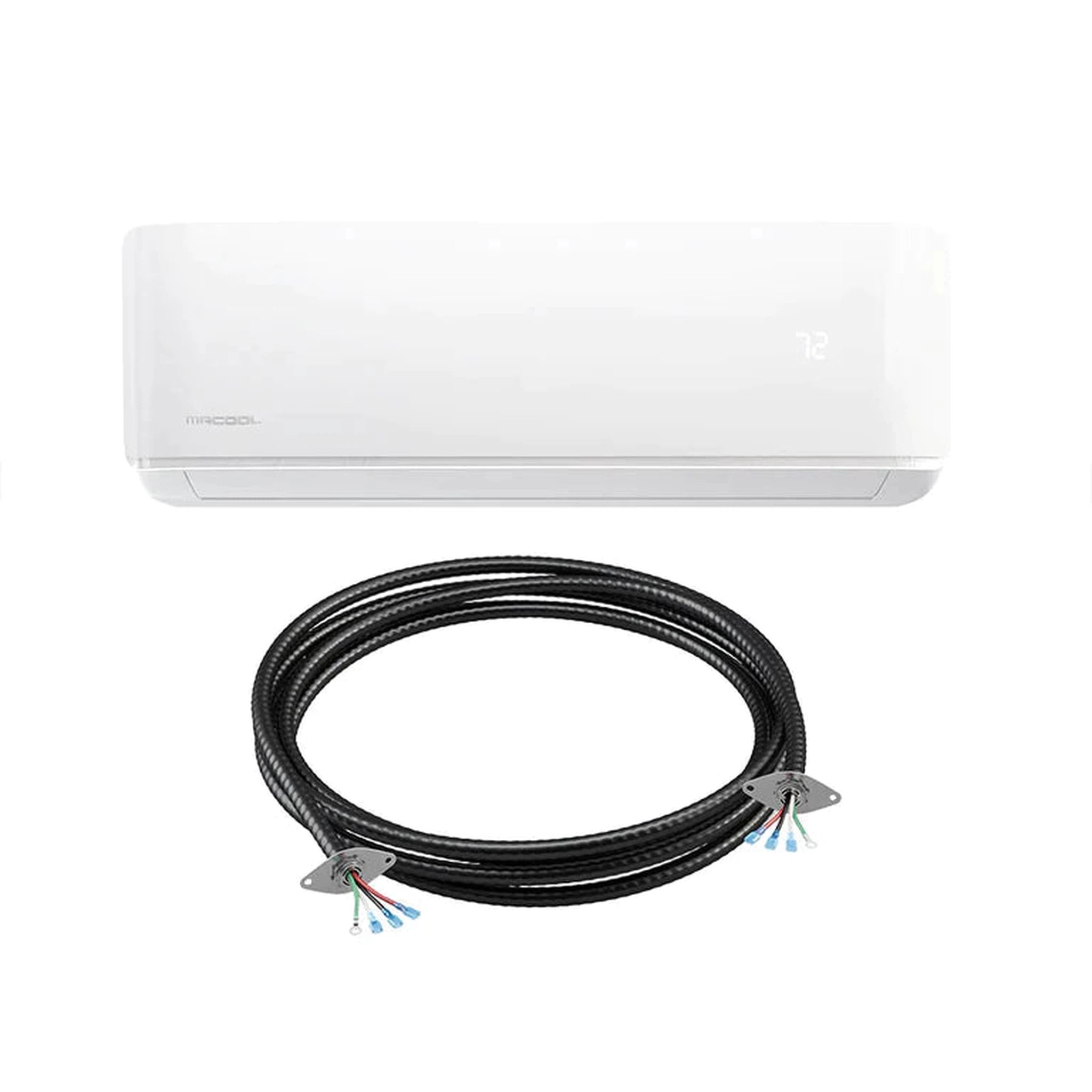

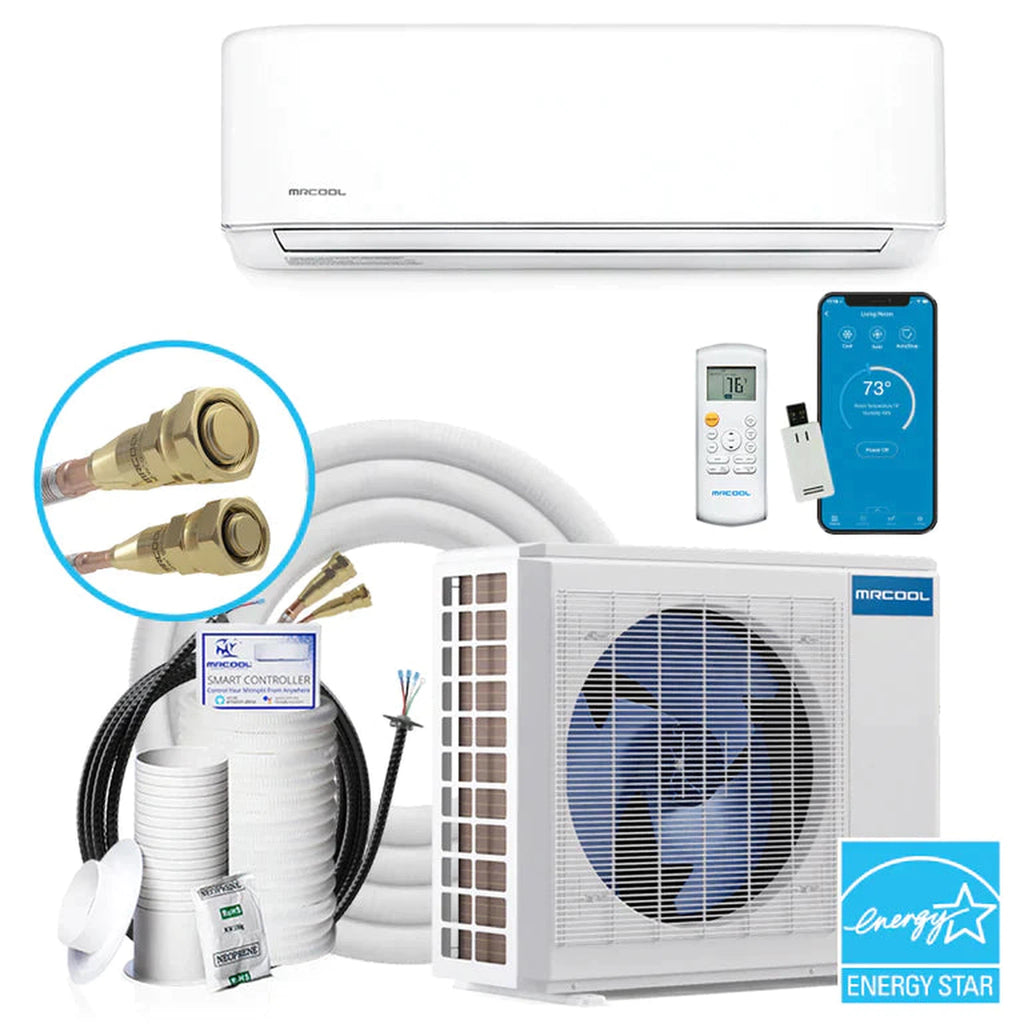

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL DIY, 22 SEER Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MRCOOL DIY system also includes many features that make it stand out among its competitors. The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified.
This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MRCOOL mini split is the only system on the market to offer a limited lifetime compressor warranty.
KEY FEATURES
- Up to 22 SEER

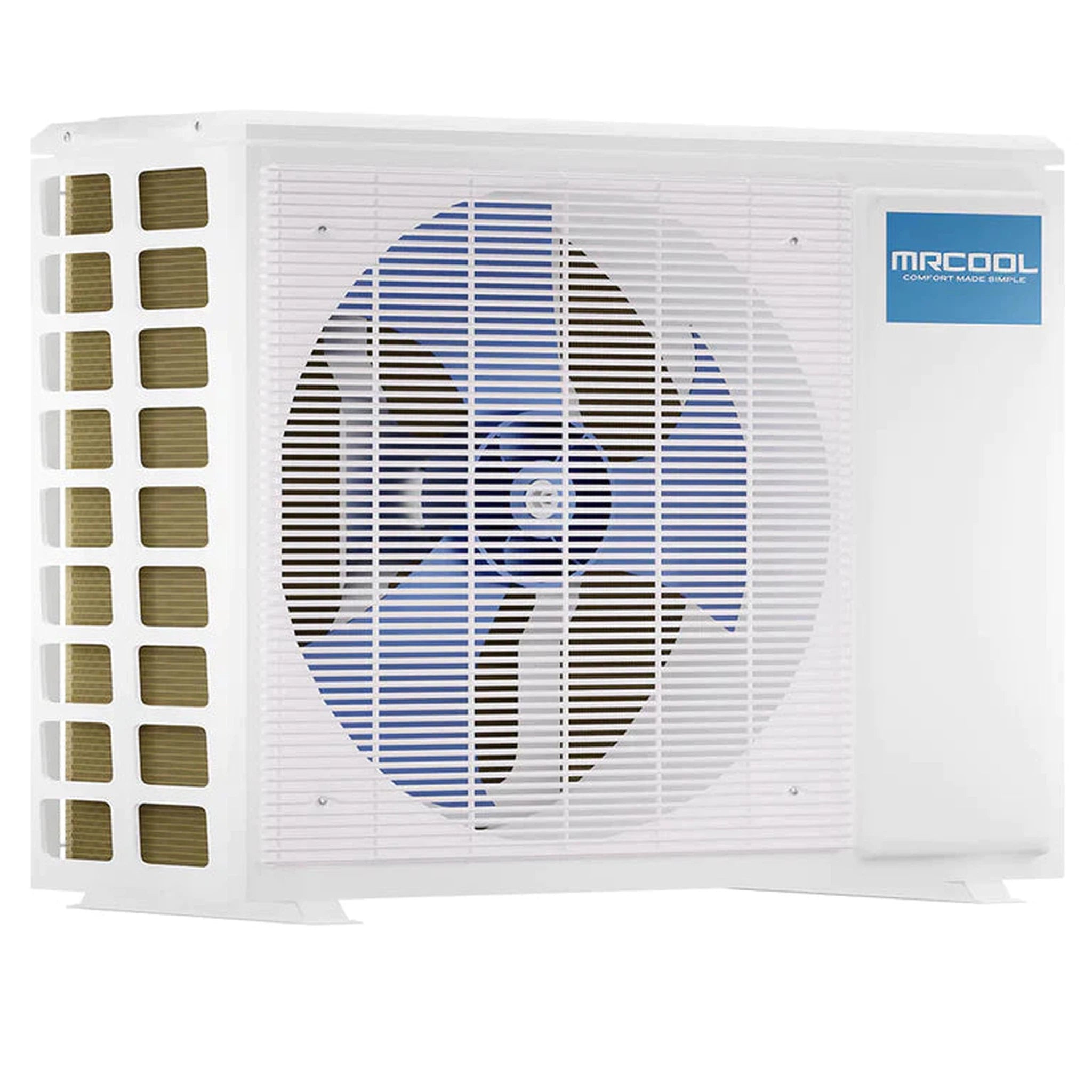

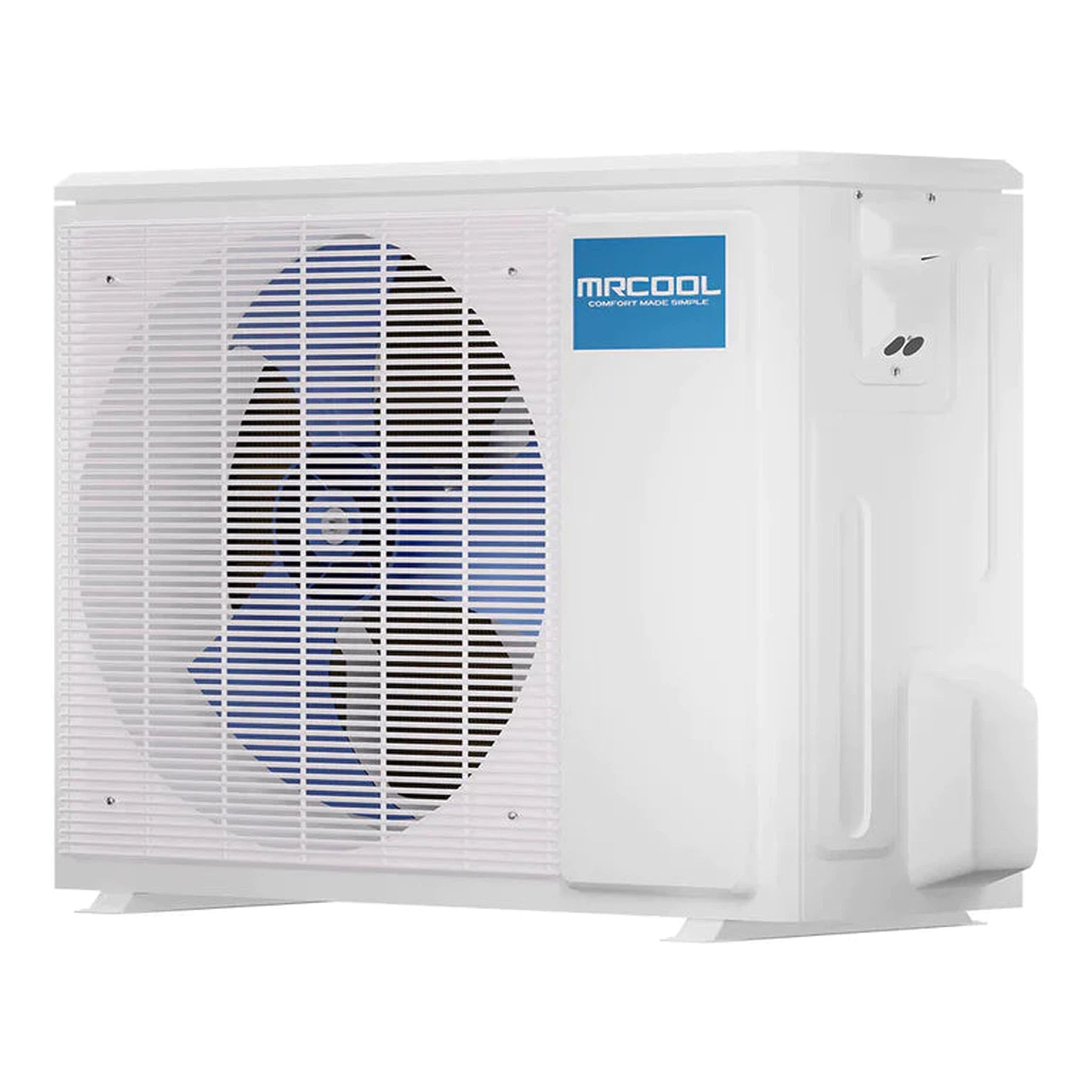

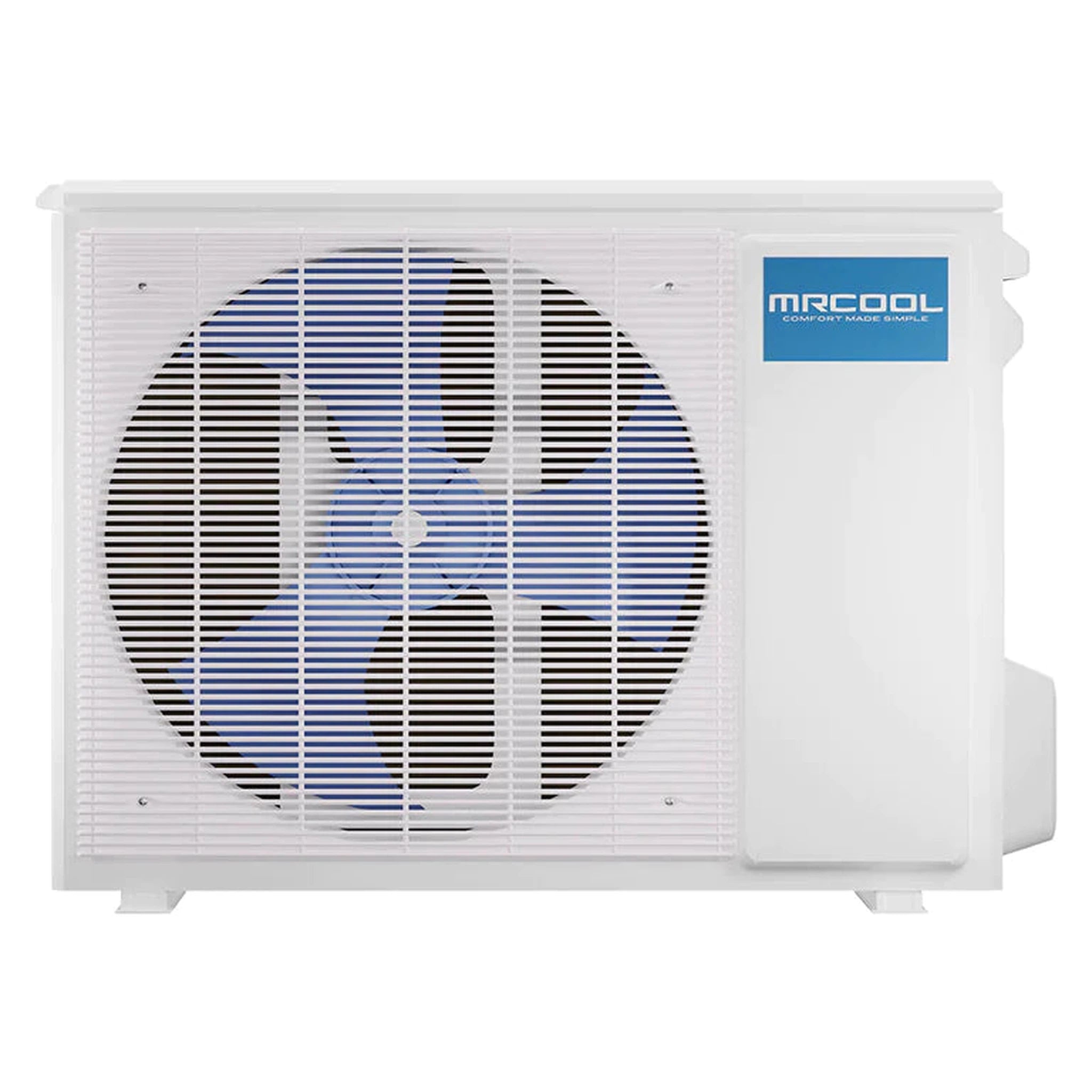

- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
12K SPECS
| Condenser Dimensions | 30.12"W x 11.93"D x 21.85"H |
| Condenser Weight | 65.70 lbs |
| Air Handler Dimensions |
31.57"W x 7.44"D x 11.69"H |
| Air Handler Weight | 24.03 lbs |
| SEER | 22 |
| EER |
12.5 |
| COP 47 |
3.36 |
| HSPF | hspf4/hspf5 : 11.5/9 |
| CFM | 305.88/211.76/147.06 |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Voltage |
Requires a minimum of 115V/60HZ/19-25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
25 A |
| Min Circuit Ampacity | 19 A |
| Color | White |
| Rate Load | 0.53 A |
| Max Coverage Area | Up to 500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 38.10 oz |
| Decibel Rating | 37/31/23.5 |
| Decibel Rating Low | 23.5 dBA |
| Decibel Rating High | 37 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 82.02 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 850/600 |
| Blower Motor RPM | 1100/850/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
| Warranty | 5-year Parts/7-year Compressor |
| Restricted States | GU;PR;VI |
18K SPECS
| Condenser Dimensions | 35.04"W x 13.46"D x 26.50"H |
| Condenser Weight | 94.36 lbs |
| Air Handler Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Air Handler Weight | 34.61 lbs |
| SEER | 22 |
| EER |
12.5 |
| COP 47 |
3.74 |
| HSPF | hspf4/hspf5 : 11.5/9 |
| CFM | 465.29/361.76/304.12 |
| Tonnage | 1.5 |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Voltage |
Requires a minimum of 208-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
30 A |
| Min Circuit Ampacity | 18 A |
| Color | White |
| Rate Load | 0.25 A |
| Max Coverage Area | Up to 750 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 56.44 oz |
| Decibel Rating | 44.5/37/31 |
| Decibel Rating Low | 31 dBA |
| Decibel Rating High | 44.5 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 810/720 |
| Blower Motor RPM | 1120/950/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
| Warranty | 5-year Parts/7-year Compressor |
| Restricted States | GU;PR;VI |
24K SPECS
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Air Handler Weight | 35.27 |
| SEER | 20.5 |
| EER |
12.5 |
| COP 47 |
3.15 |
| HSPF | hspf4/hspf5 : 10.5/9 |
| CFM | 605.88/505.88/364.71 |
| Tonnage | 2 |
| Cooling Capacity | 23,000BTU |
| Heating Capacity | 25,000 BTU |
| Voltage |
Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
35 A |
| Min Circuit Ampacity | 22 A |
| Color | White |
| Rate Load | 0.45 A |
| Max Coverage Area | Up to 1000 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 48.5/43.5/33 |
| Decibel Rating Low | 33 dBA |
| Decibel Rating High | 48.5 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Blower Motor RPM | 1200/1000/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
| Restricted States | GU;PR;VI |
32K SPECS
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 147.27 lbs |
| Air Handler Dimensions | 49.57"W x 11.10"D x 14.25"H |
| Air Handler Weight | 47.84 lbs |
| SEER | 18 |
| EER |
8.7 |
| COP 47 |
2.81 |
| HSPF | hspf4/hspf5 : 12/9 |
| CFM | 673.53/502.94/367.65 |
| Tonnage | 3 |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Voltage |
Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker |
35 A |
| Min Circuit Ampacity | 28 A |
| Color | White |
| Rate Load | 0.50 A |
| Max Coverage Area | Up to 1,500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 111.1 oz |
| Decibel Rating | 52/45/34 |
| Decibel Rating Low | 34 dBA |
| Decibel Rating High | 52 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | 5F - 122F |
| Min Ambient Heat | 5F - 75F |
| Line Set Length |
25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 950/250 |
| Blower Motor RPM | 1200/950/750 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
|
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
| Restricted States | GU;PR;VI |
