MRCOOL Central Ducted 18K BTU, 22 SEER, Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set (CENTRAL-18-HP-230-25)
Don’t let discomfort get you down. Instead, let the MRCOOL 18k BTU up to 22 SEER Central Ducted DC Inverter Heat Pump System improve the way you enjoy your time at home by making it the exact temperature you want. This affordable system heats or cools around 750 square feet, making it a perfect choice for providing efficient and effective comfort.

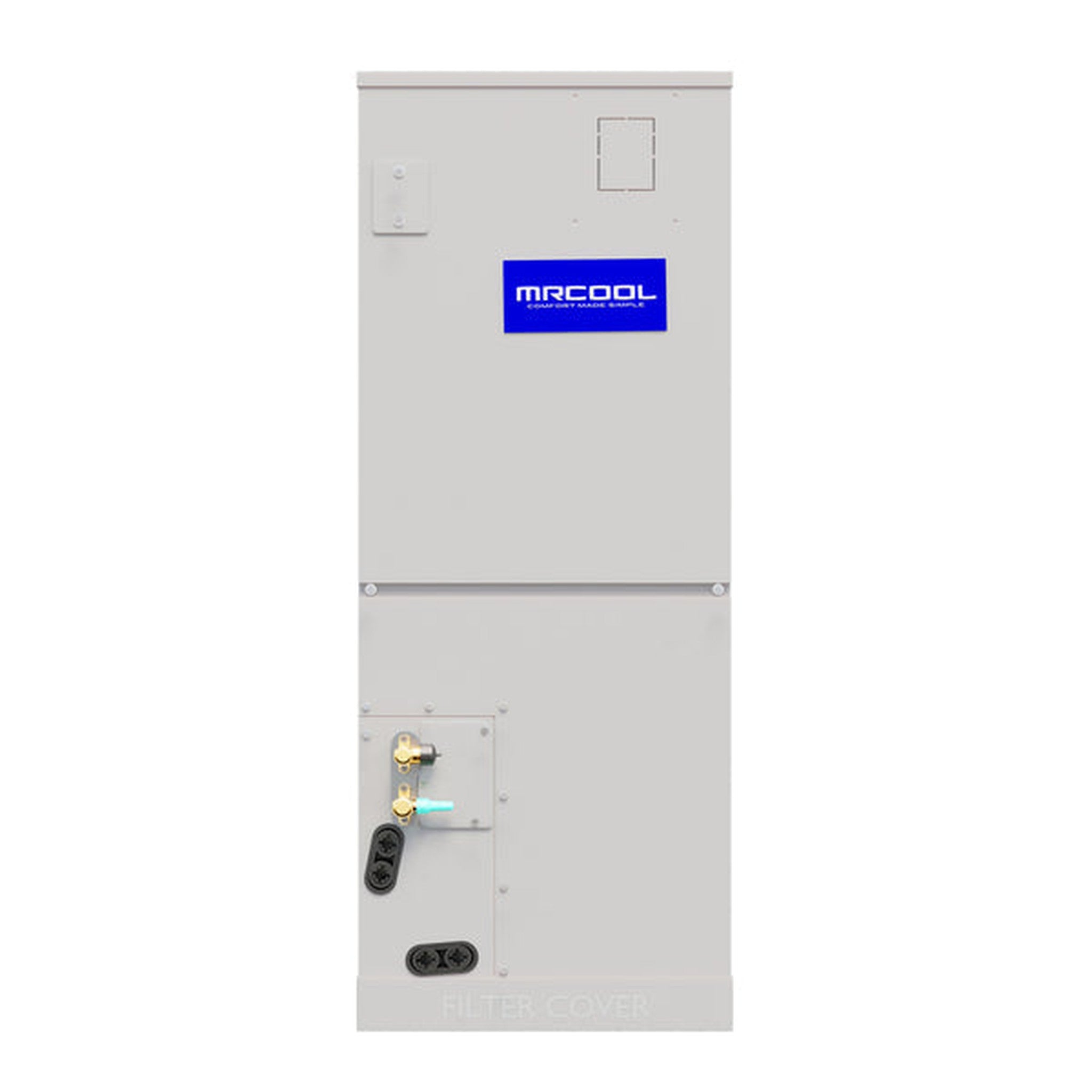

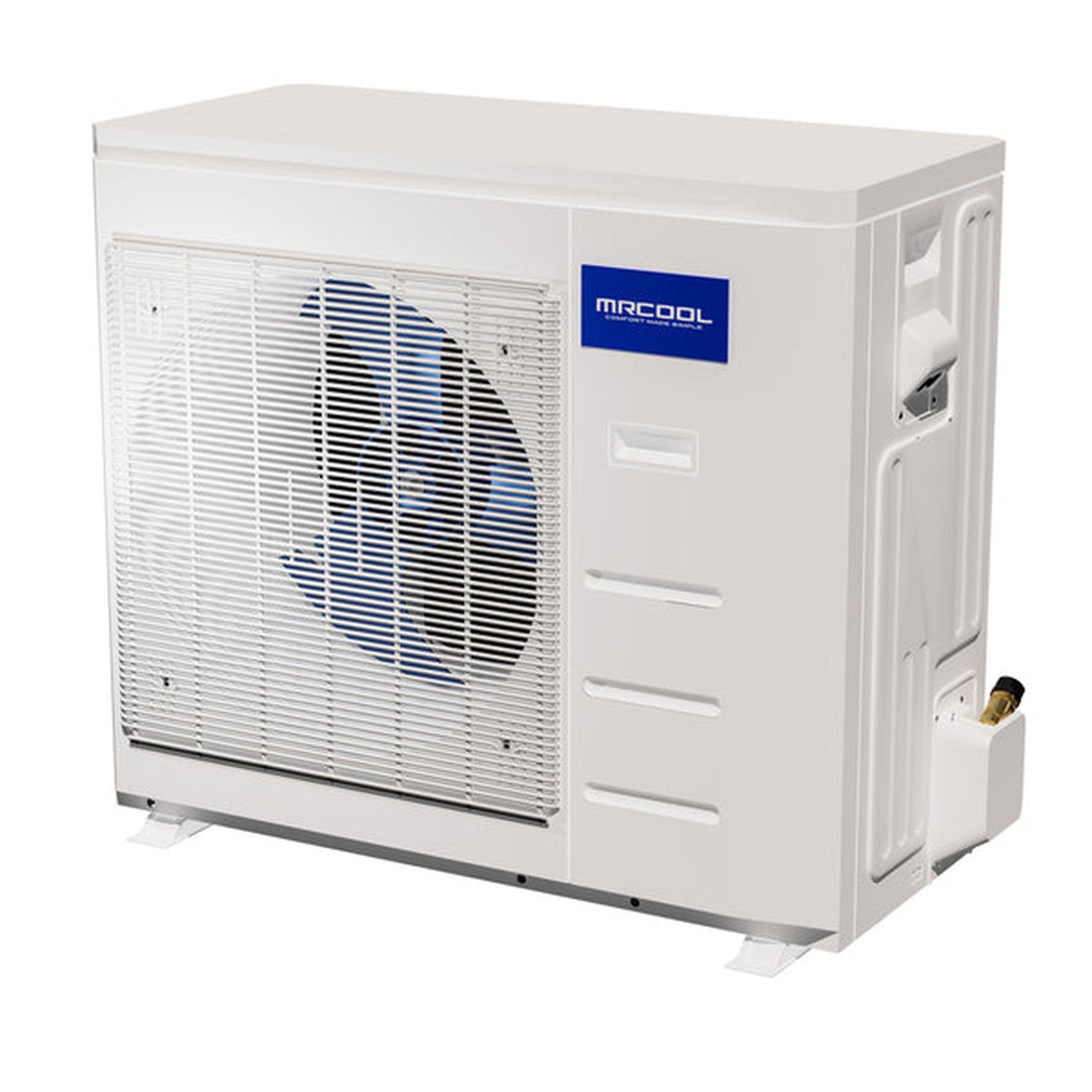

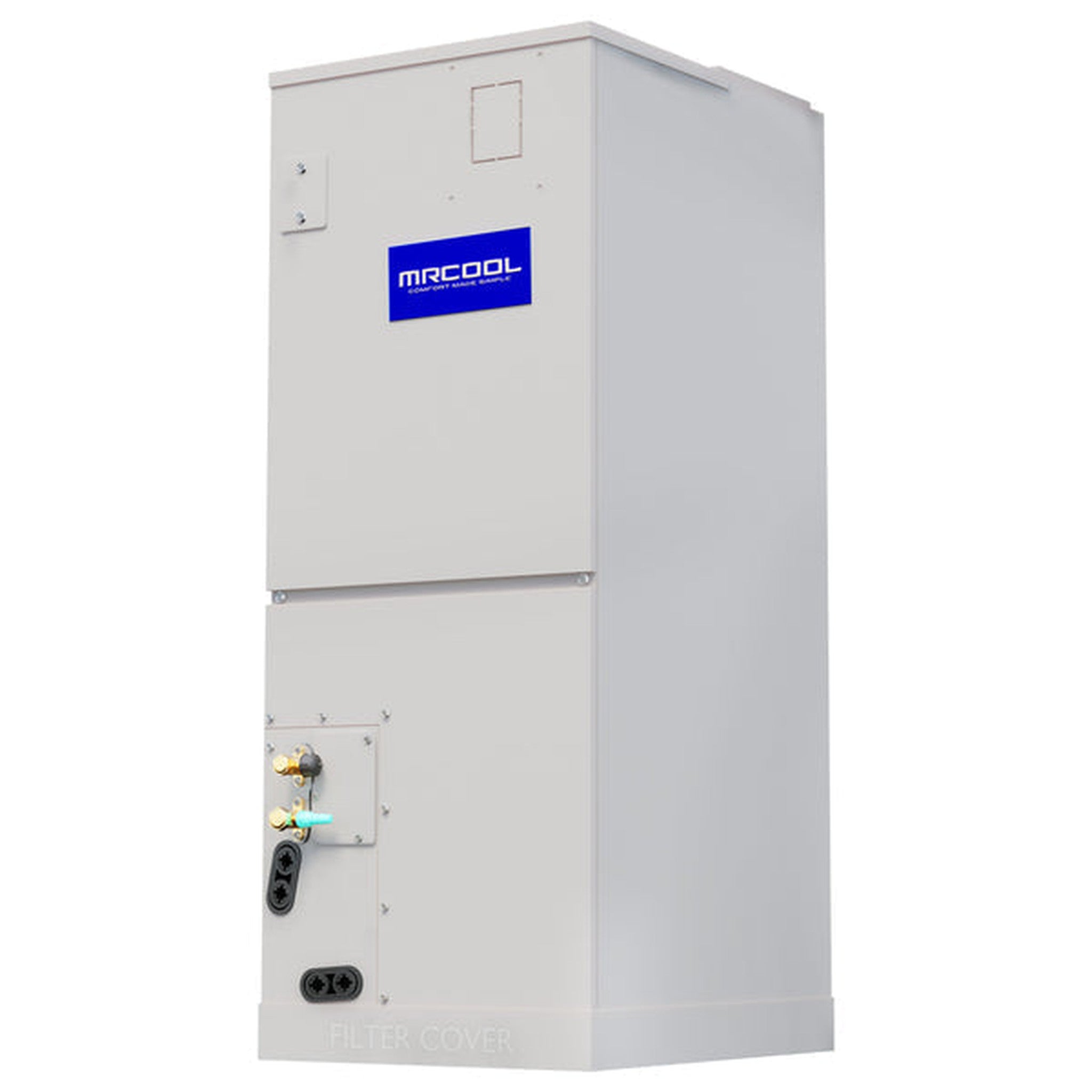

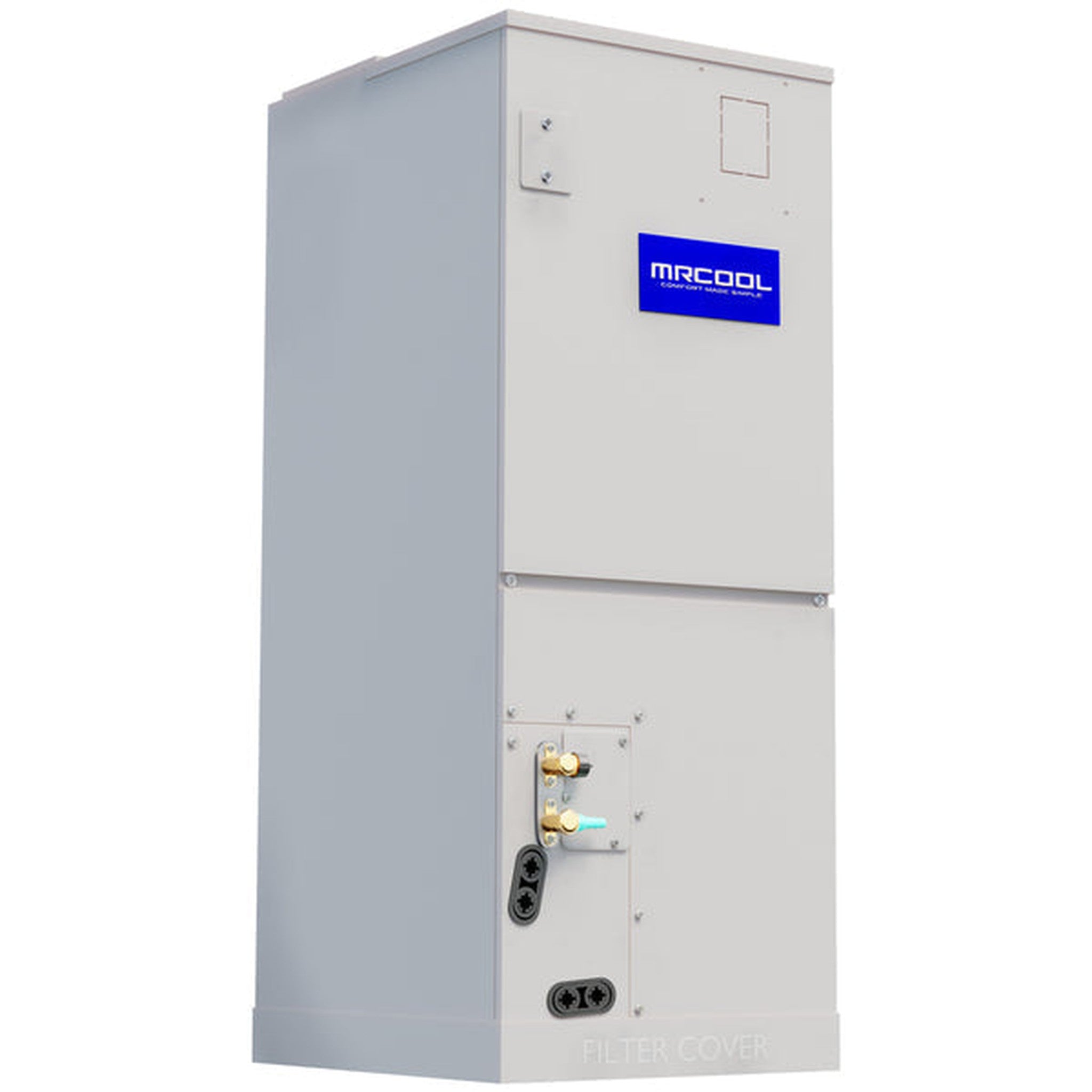

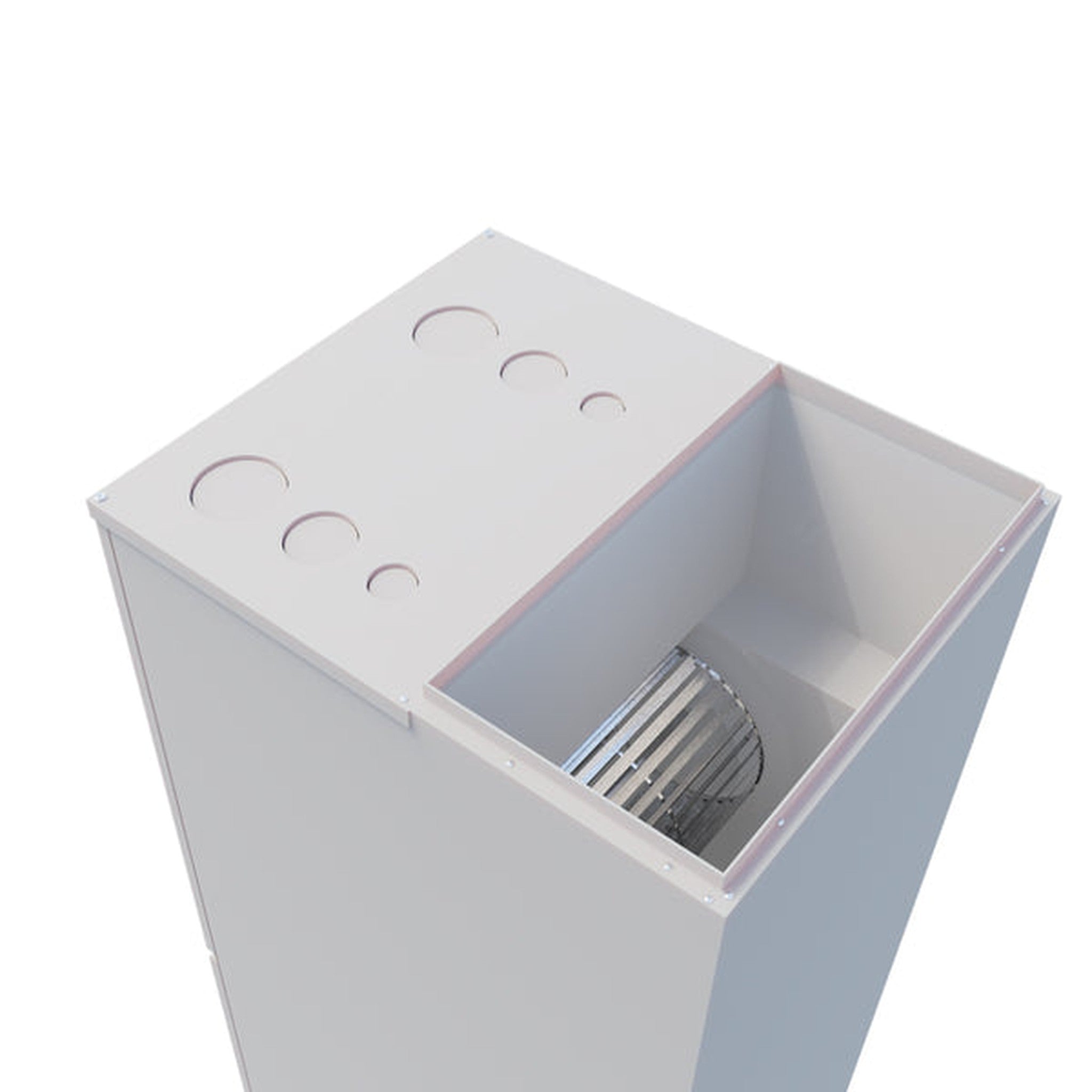

This system also comes with a 25 foot MRCOOL pre-charged line set that essentially just needs to be plugged into the air handler and condenser. This cuts your HVAC technician’s installation time significantly, so you’re saving both time and money! The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.
The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. You’ll be covered in the unlikely event that something goes wrong if you register your system for the 10 year parts and service warranty. Choose this MRCOOL 18k BTU 22 SEER Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.
FEATURES
- Includes features such as timer mode, auto cool mode, fan only mode, and more

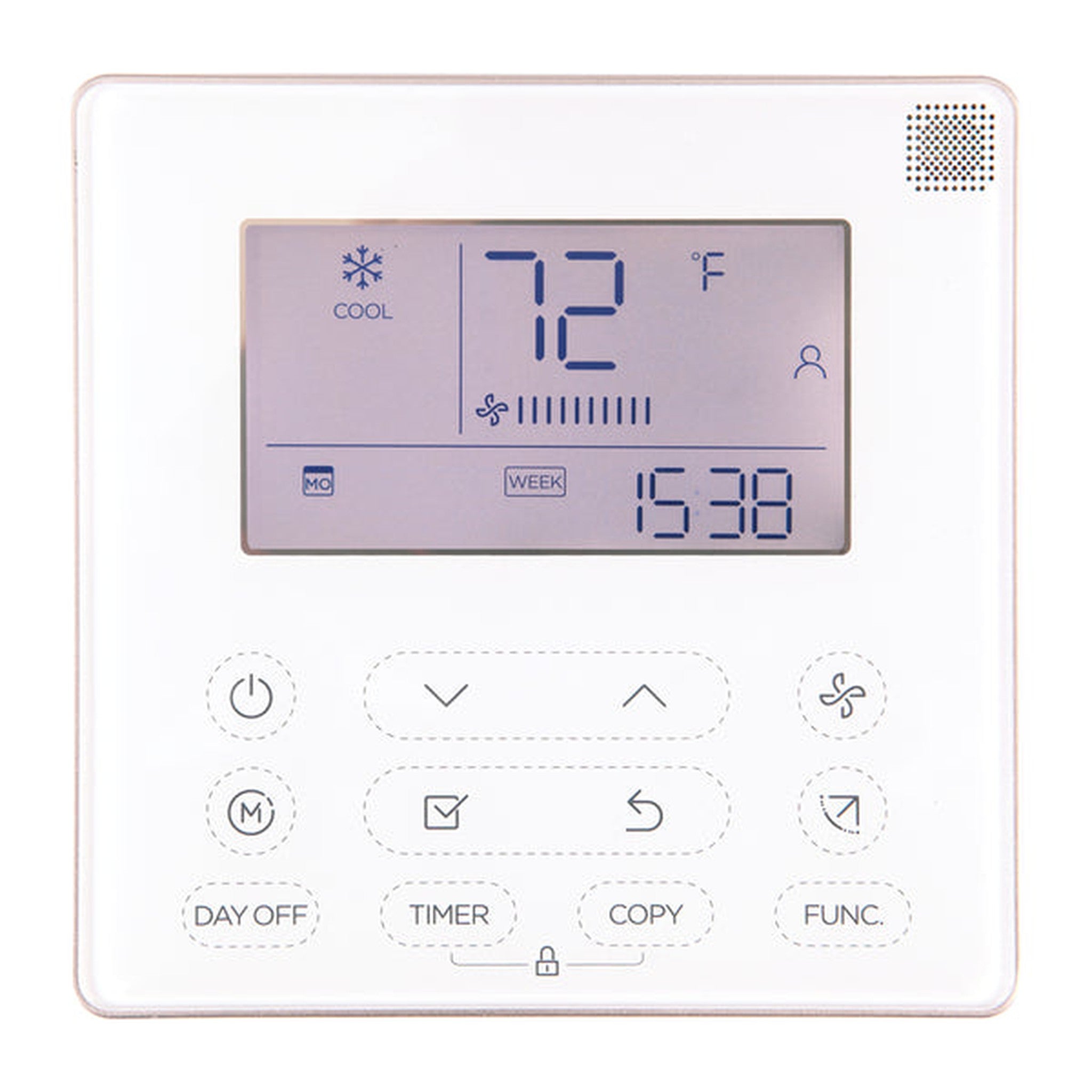

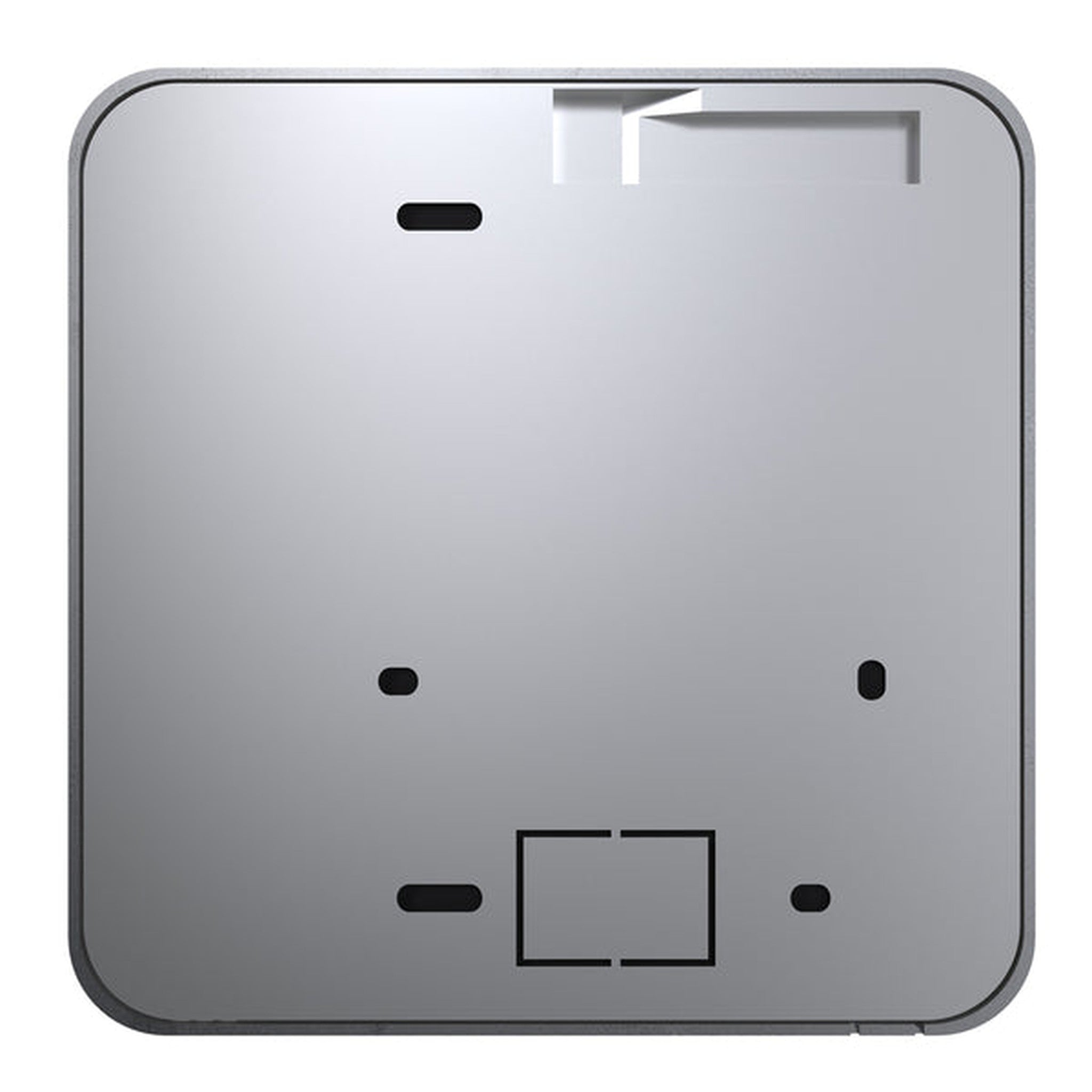

- Wired thermostat included (.78 in x 4.72 in x 4.72in)
- Multi position installation
- Optional heating kit available
- R-410A environmentally friendly refrigerant
- 10 year parts and labor warranty*
Specifications
Condenser Dimensions |
13.46" D x 26.5" H x 35.04" W |
Air Handler Dimensions |
17.52" D x 45" H x 21.02" W |
SEER |
22 |
EER |
12.5 |
HSPF |
hspf4/hspf5: 11/9 |
CFM |
576.47/529.41/494.12 |
Cooling Capacity |
18000 |
Heating Capacity |
18000 |
Voltage |
208/230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
30 |
Min Circuit Ampacity |
18 |
Color |
Gray |
Rated Load |
0.76 |
Zone Capacity |
1 |
Refrigerant Type |
R410A |
Refrigerant Volume |
56.44 oz |
Decibel Rating |
39.5/38.5/35.5 |
Decibel Rating Low |
35.5 |
Decibel Rating High |
39.5 |
Air Flow Direction |
Multi-position |
Min Ambient Cool |
-13F~122F |
Min Ambient Heat |
-13~75.2F |
Lineset Included |
yes |
Line Set Length |
25ft |
Liquid Line Size |
1/4in |
Suction Line Size |
1/2in |
Compressor Motor Type |
Rotary |
Condenser Fan Motor Rpm |
810/720 |
Filter Type |
Replaceable |
Auxiliary Heater Included |
no |
Auxiliary Heater Available |
yes |
Auxiliary Heater Sizes |
5kw, 8kw, 10kw |
Adjustable Thermostat |
yes |
Fan Only Option |
yes |
Sleep Mode |
yes |
Auto Cool |
yes |
App Compatibility |
no |

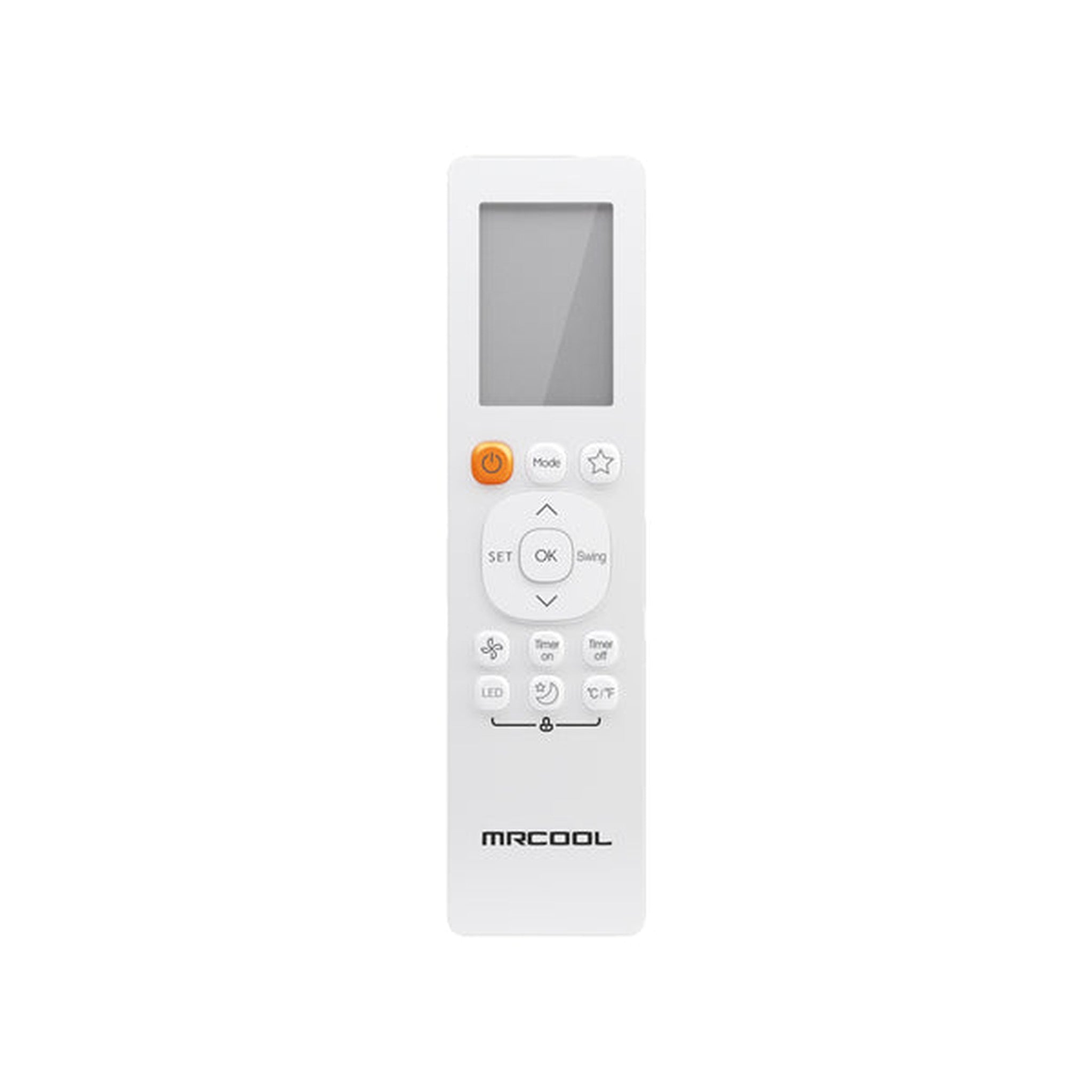

Remote Control Included |
yes |
AHRI Certified |
yes |
Base Warranty |
10 years parts and labor |
Condenser Weight |
94.36 lbs |
Air Handler Weight |
106.48 lbs |
