| Model | CU-BDT-ASME42 |
|---|---|
| Shipping Weight | 140 lbs |
| Height | 36" |
| Diameter | 12" |
Description

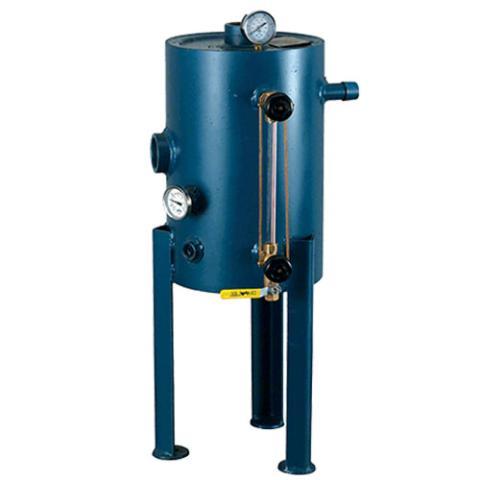

Mr.Steam CU-BDT-ASME42 Blowdown Tank, AMSE, CU2500, CU3000, CU4500
For drain and blowdown from CU steam generator, complete with temperature and pressure gauges, and gauge glass assembly. ASME code UM vessel. Permits draining of boiler water to comply with building Codes requiring max 140°F discharge.
Features
- Meets ASME code requirements
- Built-in temperature gauge
- Built-in pressure gauge
- Gauge glass assembly
- Utilizes water seal at outlet
- No electrical hookup required
Includes
- Blowdown tank, 36"H x 12"Dia
- Installation and operation manual
- Limited warranty
