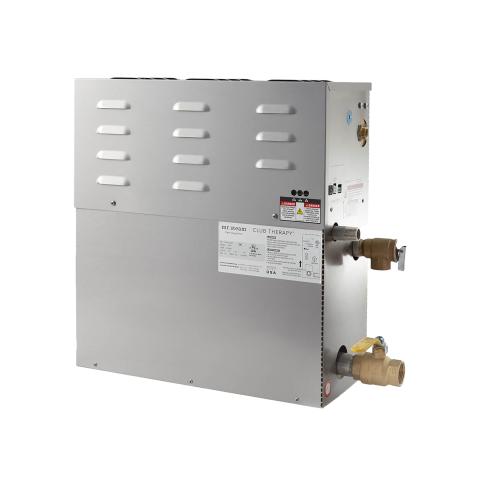

Mr.Steam CT Steam Generator 9 Commercial Steam Bath Generator, CT Spa Series, 9kW, Stainless Steel
The Mr.Steam CT9E Commercial Steam Shower Generator is constructed with a durable stainless-steel outer casing and equipped with the latest technology. It's perfect for any resort or day spa steam shower. The Express Steam features a built-in thermostat that maintains water temperature so your spa members can start steaming quickly.
The CT9E day spa generator is available in 240V and 208V single-phase (1PH) configurations.
With a water usage of 1.2 gallons during a 20-minute steam bath session, this day spa generator makes it both eco-conscious and economical.
The Mr.Steam CT day spa generators carry a limited lifetime warranty and are fully serviceable. All Mr.Steam commercial steam shower units are designed, engineered, and assembled in America.
Features
- Industrial grade and serviceable heating element
- Unitized stainless steel reservoir
- Durable electronic components
- Round mini-DIN control connections
- Electronic water-level system
- Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
- Low voltage safety control circuits
- Built-in 24V circuits
- ASME safety valve and full port drain valve
- UL/cUL listed
Includes
- CT Day Spa 9kW Generator
- Express Steam (Factory Installed)
- Installation and Operation Manual
- UL/cUL Listed and CE Approved
- Limited Warranty
Specifications
| Model | CT9EC1 |
|---|---|
| Kilowatt Rating | 9kW |
| Minimum Adjusted Cubic Feet | 108 |
| Maximum Adjusted Cubic Feet | 257 |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Length | 17" |
| Depth | 7 7/8" |
| Height | 18 1/2" |
| Shipping Weight | 40 lbs |
