Description

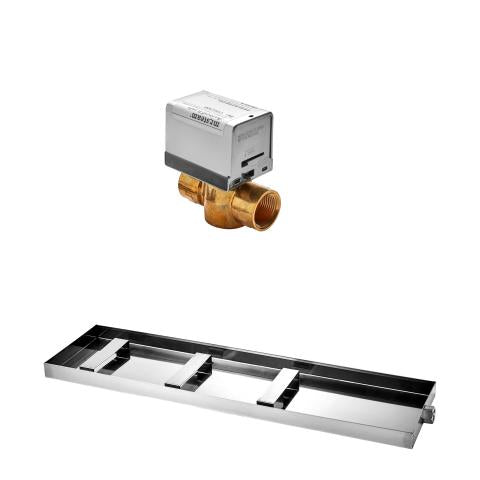

Mr.Steam 104549MX MX AIRTEMPO Rough-In Package
The package has everything you need for the rough in stage of a steam shower system installation of an AirTempo Control and a MAX Generator, and features an AutoFlush®, and a Condensation Pan®.
Features
- For use with all MrSteam MAX Generators and AirTempo Controls
- MAX AutoFlush Introduces fresh water before each steam bath and drains the MAX Series generator tank following use.
- Max Condensation Pan installs beneath the MAX Steam Generator, connects to an approved drain line to collect, and direct a potential water accumulation or leak.
- Product Dimensions: 10”L x 36”W x 6”H
Includes
- MAX AutoFlush Valve 1" with Cord
- MAX Condensation Pan
- 2 Year Warranty (Consumer use)
- Installation and Operation Manual
Specifications
| Model | 104549MX |
|---|---|
| Pan Material | Galvanized sheet metal construction |
| Installation Type | Hardwired |
| Certifications | cULus |
| Pan dimensions | |
| Length | 35" |
| Width | 9" |
| Height | 1.5" |
| Product dimensions | |
| Length | 10" |
| Width | 28" |
| Height | 6" |
| Shipping dimensions | |
| Length | 11" |
| Width | 29" |
| Height | 7" |
| Product weight | 7 lbs |
Users Manual & Guide
Installation & Operation Manual
