HUUM HIVE MINI 9kW Sauna Heater Package w/UKU Local Controller and Stones
The HUUM Hive Mini 9STU PKG features all the necessities to give your sauna space a touch of tradition. This all-inclusive package features a sauna control package complete with optional Wi-Fi,330lbs of olivine stones for a long-lasting steam and a 9.0kW sauna heater engineered for spaces up to 530 cubic feet (CF).
Includes
HIVE Mini 9kW Sauna Heater
- 9.0kW Sauna heater
- Adjustable legs
- Installation and Operation manual
- 5-Year limited warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Stones 24
- 330 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Features

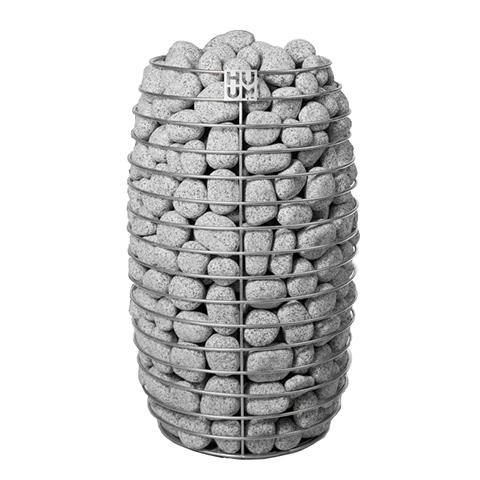

Hive Mini 9.0kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 317 to 530 cu. ft.
- Works with UKU controls (sold separately)
- 330 pound stone capacity (265lbs with use of HIVE air tunnel -sold separately)
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1" Diameter (460mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)

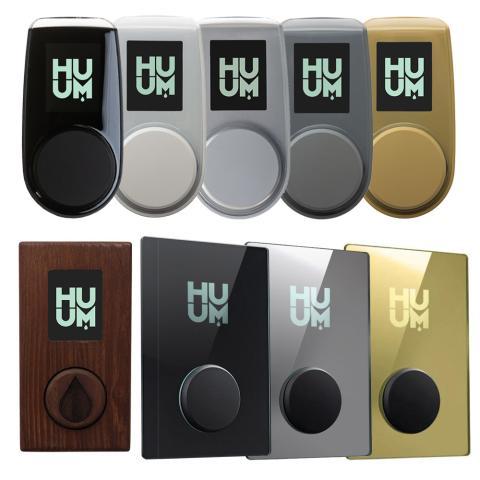

UKU Local
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance
- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

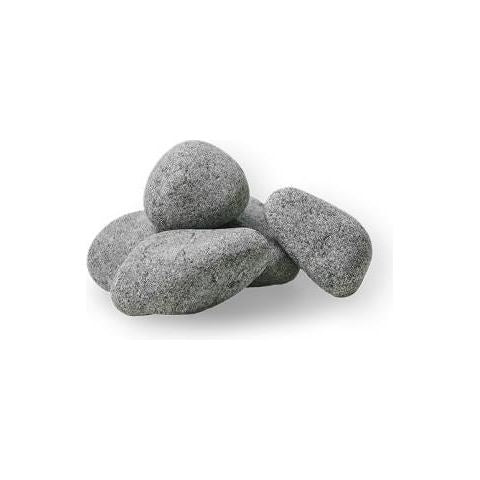

Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Specifications
| Model |
HIVE Mini 9.0STU Pkg |
| Model |
Hive Mini 9 |
| Kilowatt Rating |
9.0 KW |
| Minimum Cubic Feet |
317 CF |
| Maximum Cubic Feet |
530 CF |
| Heater Weight |
36 lbs |
| Shipping Weight with Sauna Stones |
366 lbs |
| 240V, Single Phase Amperage |
37.5 Amps |
| Circuit Breaker |
50 |
| Wire Size AWG |
8 |
| Diameter |
18.1" (460mm) |
| Height |
29.5" (750mm) |
| UKU |
|
| Minimum Temperature Setting |
104 F |
| Maximum Temperature Setting |
230 F |
| Shipping Weight |
20 lbs |
| Console Dimensions |
|
| Width |
2.2" (55mm) |
| Depth |
0.9" (22mm) |
| Height |
4.1" (105mm) |
| Main Module Dimensions |
|
| Width |
3.5" (90mm) |
| Depth |
2.3" (58mm) |
| Height |
5.6" (142mm) |
| Display Panel Cable |
|
| Length |
9.8 ft |
| AWG |
22 |
| Temp Sensor Cable |
|
| Length |
16.4 ft |
| AWG |
24 |
| Door Sensor Cable |
|
| Length |
16.4 ft |
| AWG |
24 |
Users Manual & Documents
