Description

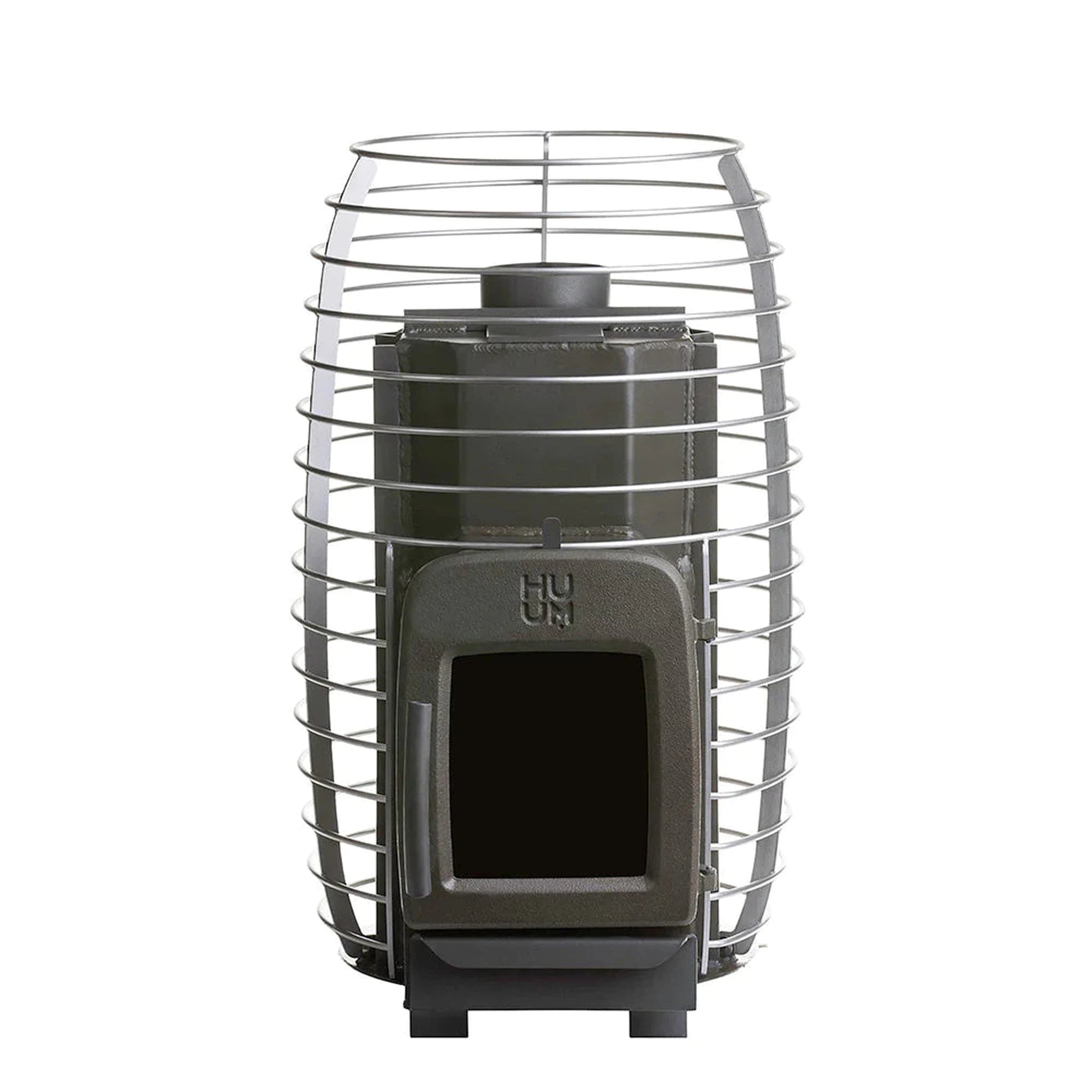

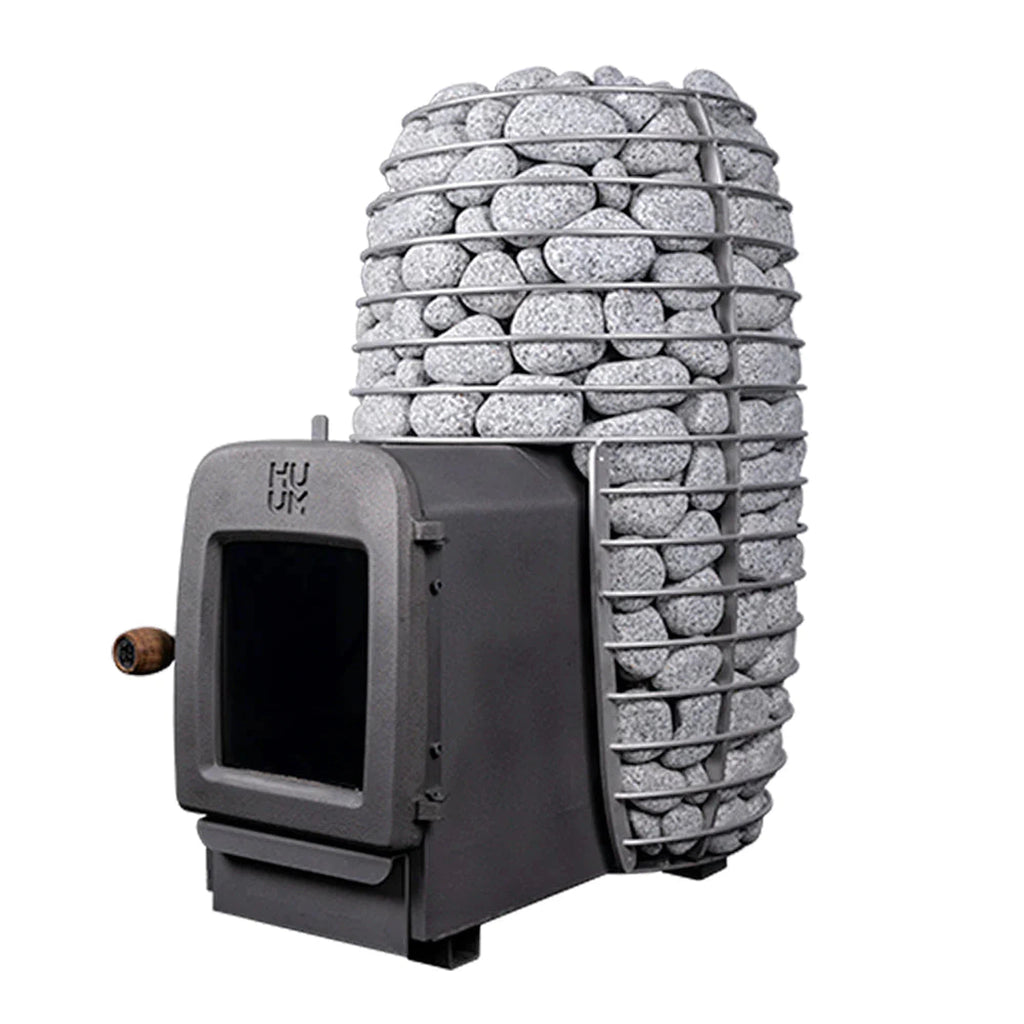

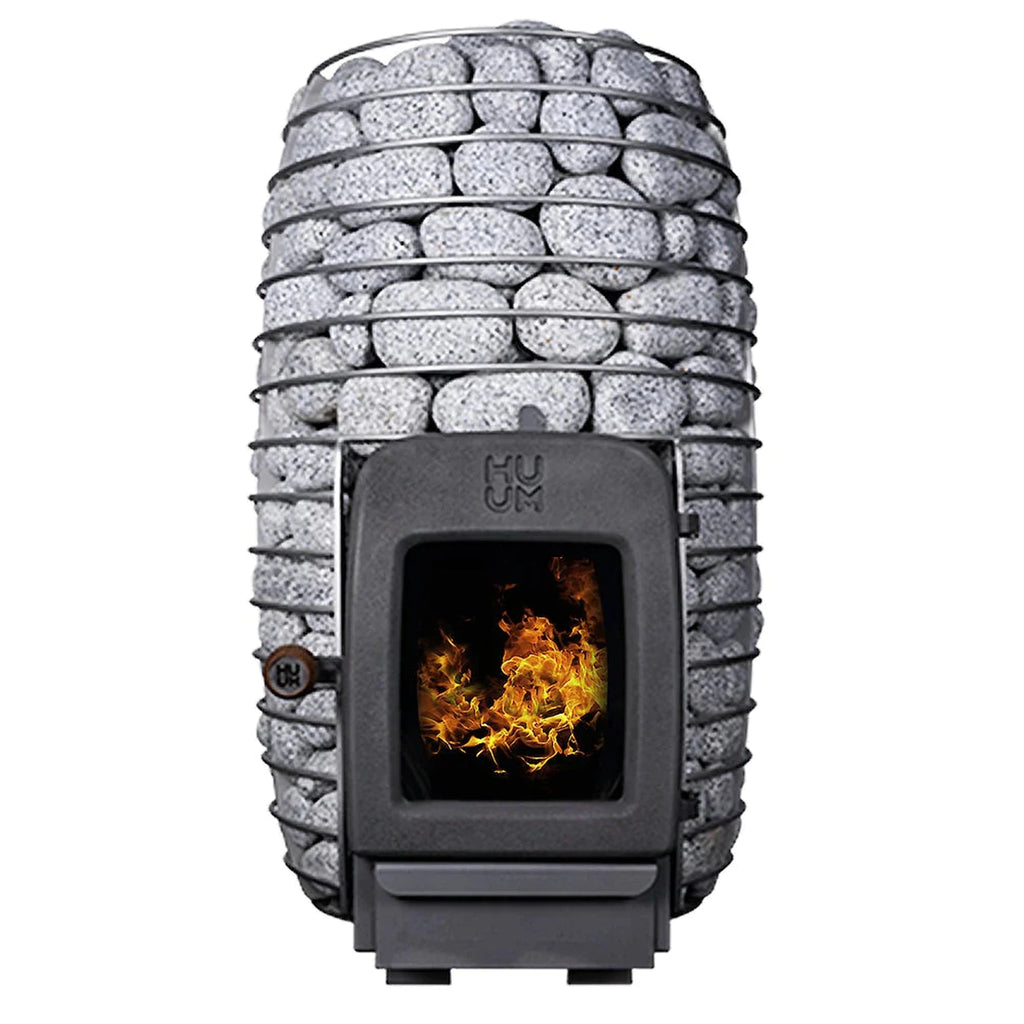

HUUM HIVE Heat Sauna Stove
HIVE Heat is a highly efficient wood-fired sauna heater for smaller saunas. It has a unique structure where fresh air is conducted into the burning process from above to create a strong flame. This allows the burning to be very clean and makes sure that all the wood gets burned and no wood gas escapes the chimney and goes to waste like it often does with less efficient stoves. The furnace door is made of cast iron which is very resistant and easy to maintain.
HIVE Heat complies with BimSchV II, the German standard for wood-burning stoves. The sauna stove is treated only with natural oils without the use of chemicals.
Features
Features
- Stainless steel
- Elegant design
- Unique design for more efficient burning
- Large Stone capacity

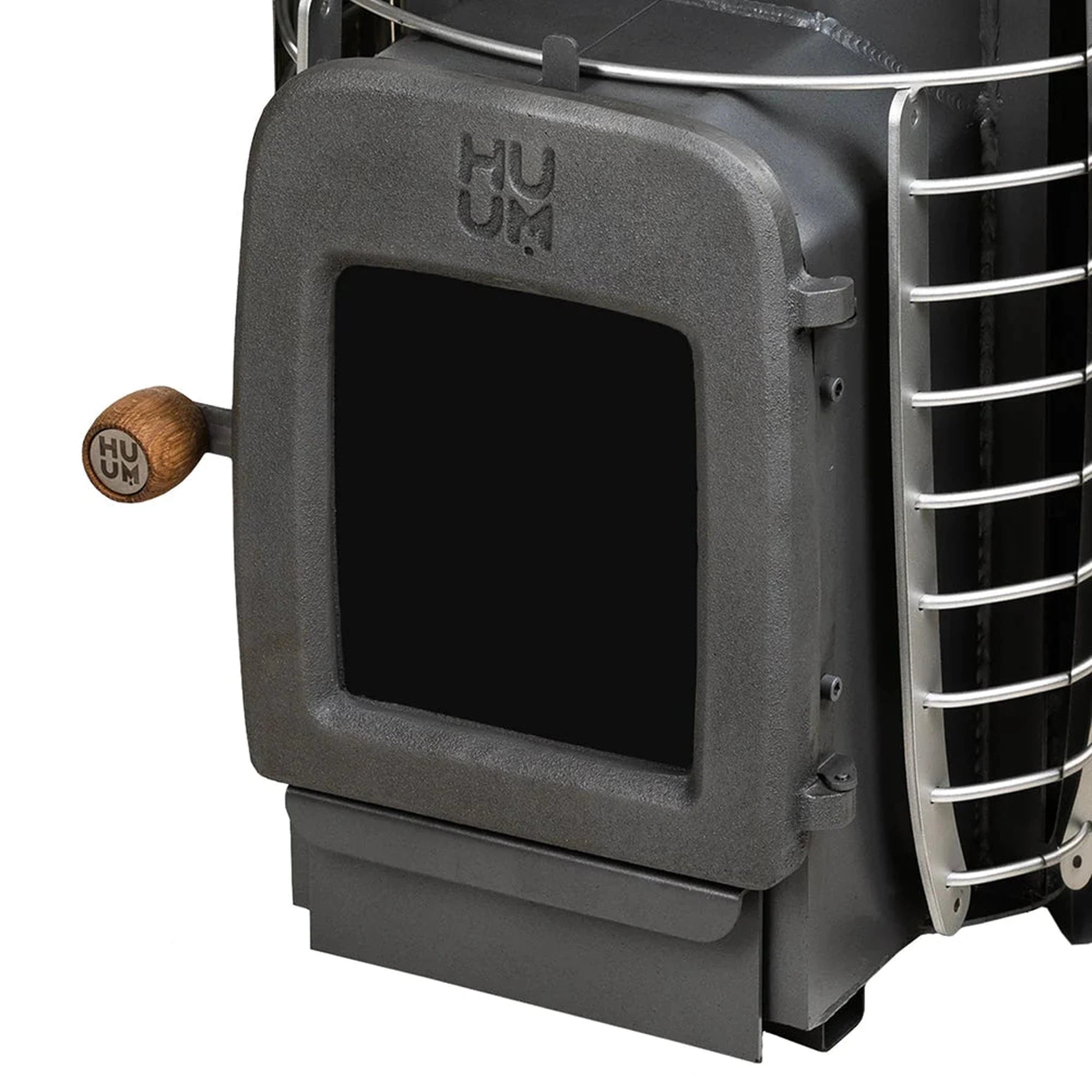

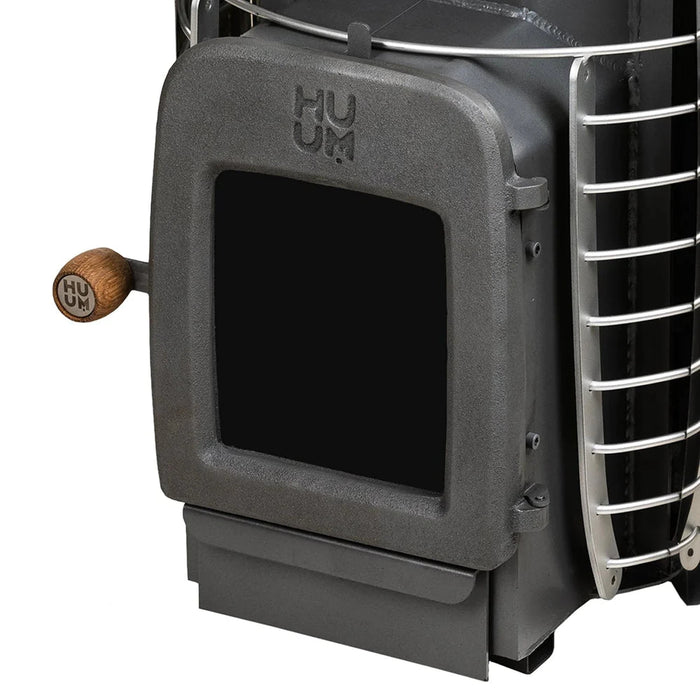

- Cast iron furnace door
- Treated only with natural oils
- model HIVE Heat 12 LS allows heating from another room

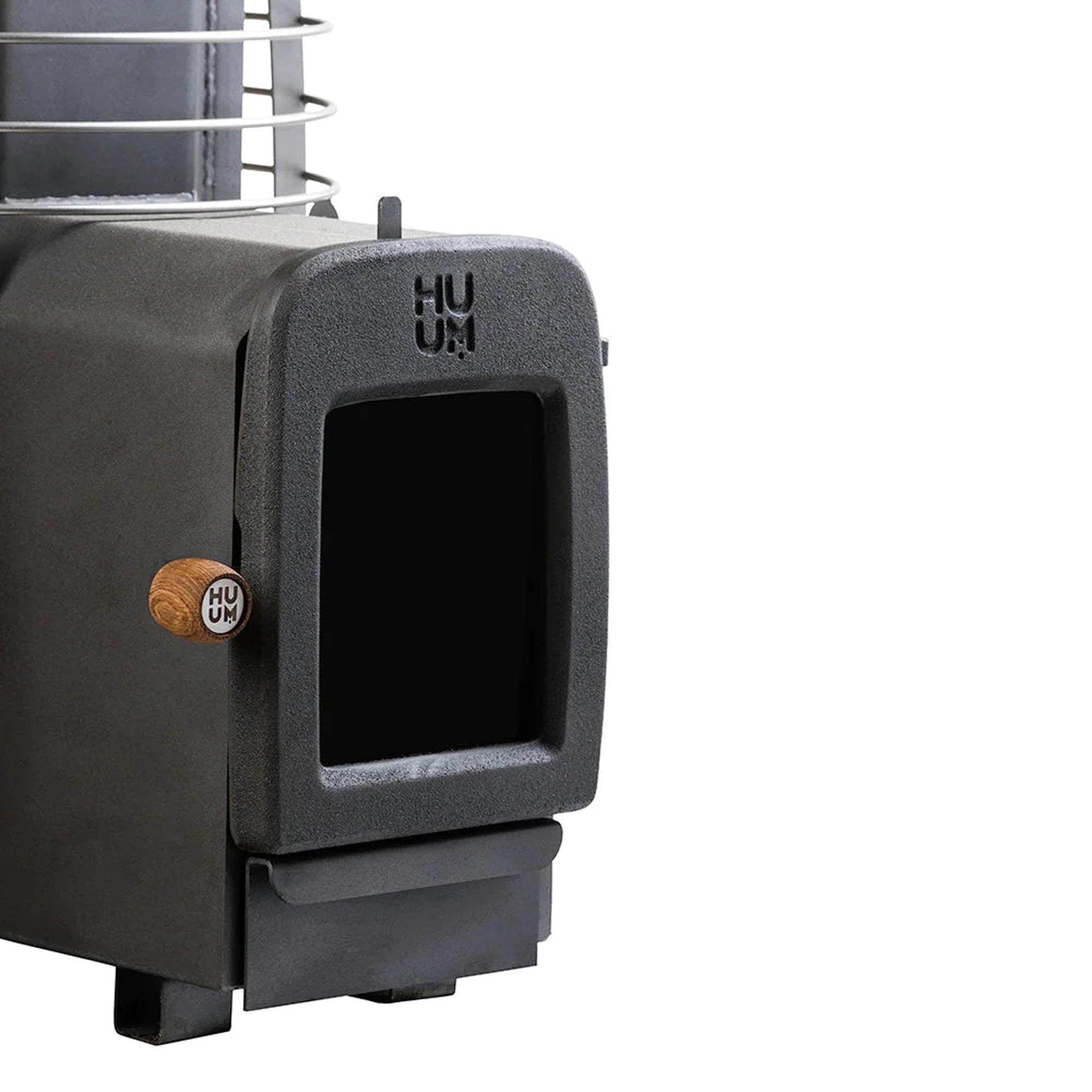

- Firebox extension to heat from another room
- 5-year guarantee
- Stainless steel construction
- Floor-mounted
- Designed and precision-crafted in Estonia
- Complies with BimSchV II
- INSTALLATION & OPERATION MANUAL
Specifications
HEATER
- Sauna room: 6-13 m³ (212 - 459 cu. ft.)
- Stone capacity: 90 kg
- Watts: 12KW
- Weight: 56kg
- Height: 750 mm
- Width: 450 mm
- Depth: 490mm
- Rock Capacity: 198lbs
- Firewood max: 300mm
- Flue (⌀): 115 mm
- Installation Type: On the Floor
HUUM HIVE Heat 12KW LS
HEATER
- Sauna room: 6-13 m³ (212 - 459 cu. ft.)
- Stone capacity: 90 kg
- Watts: 12KW
- Weight: 67 kg
- Height: 750 mm
- Width: 450 mm
- Depth: 640 mm
- Rock Capacity: 198lbs
- Firewood max: 300 mm
- Flue (⌀): 115 mm
- Installation Type: On the Floor
HUUM HIVE Heat : Dimensions
| WATT | HEIGHT | WIDTH / DEPTH | LENGTH / WIDTH |
| 12 KW | 29.625" | 19.375" | 17.75" |
| 12 KW LS | 29.625" | 25.25" | 17.75" |
Maintenance
MAINTENANCE INSTRUCTIONS
1. Use only clean water on Sauna stones. Do not use spa or pool water as it will destroy your heater.
2. Clean water should always be used in Sauna buckets and water should be dumped out after every use. Scour buckets and dippers occasionally when film collects from usage. Use plastic bucket liner in bucket to prevent water leakage.
3. Scrub benches with a soft brush, using soap and water or a mild disinfectant, when needed – about once a week in commercial Saunas, or depending upon sauna usage. For sanitation, each bather should sit or lie on a towel (this will prolong bench life).
4. Remove possible removable flooring and wash waterproof floor with disinfectant (e.g. Pine Sol) about once a week or as often as needed. Hose off removable flooring to clean.
5. To maintain the beautiful appearance of the Sauna heater, remove water stains by wiping a damp cloth occasionally.
6. Our Sauna Heaters require no special maintenance when properly installed by a qualified electrical contractor. After 1 year of usage, the rocks may need replacing if they have crumbled or powered.
7. We strongly recommend a floor that can be easily cleaned (concrete, ceramic tile, or a poured type of flooring). When this is provided, the Sauna can be easily cleaned and kept in a sanitary condition with little effort. A carpet is NOT recommended for a Sauna! A carpet becomes a perfect breeding ground for bacteria in the moist conditions of a Sauna, and a carpet promotes the spread of foot diseases such as athlete‘s foot.
8. In new construction, a floor drain should also be provided, especially in commercial Saunas for sanitary cleaning and maintenance.
9. Seal wood around glass in door – inside and outside – with Thompson‘s Water Seal to prevent warpage.
10. When Sauna wood becomes stained from perspiration, the wood may be lightly sanded with fine sandpaper to restore a beautiful appearance. We do not recommend stains or sealers as toxic vapors may appear when heated. However, 2 coats of Thompson‘s Water Seal may be used on the wood benches in a commercial Sauna, so that the wood may be more easily cleaned and kept sanitary – the wood will not absorb perspiration.
11. The Sauna room will heat faster if the higher vent is kept in a closed position when heating. The lower vent may always be kept in an open position.
12. Required warning signs should be posted according to the instructions.
IMPORTANT!
- Owner of the sauna heater must make sure that the sauna heater is turned off correctly every time after bathing.
- Owner of the sauna heater must obey these maintenance instructions!
