Description

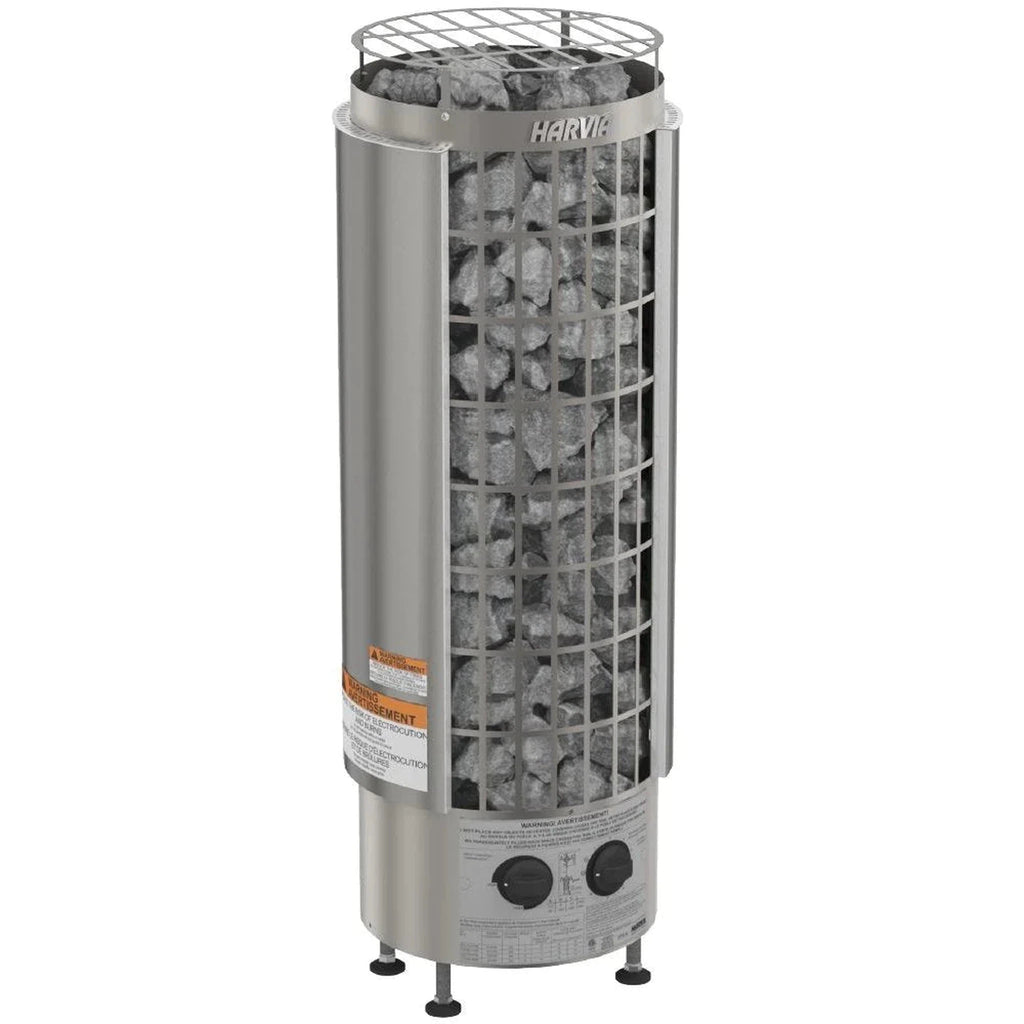

Harvia Cilindro Half Electric Heater with Built-In Controls

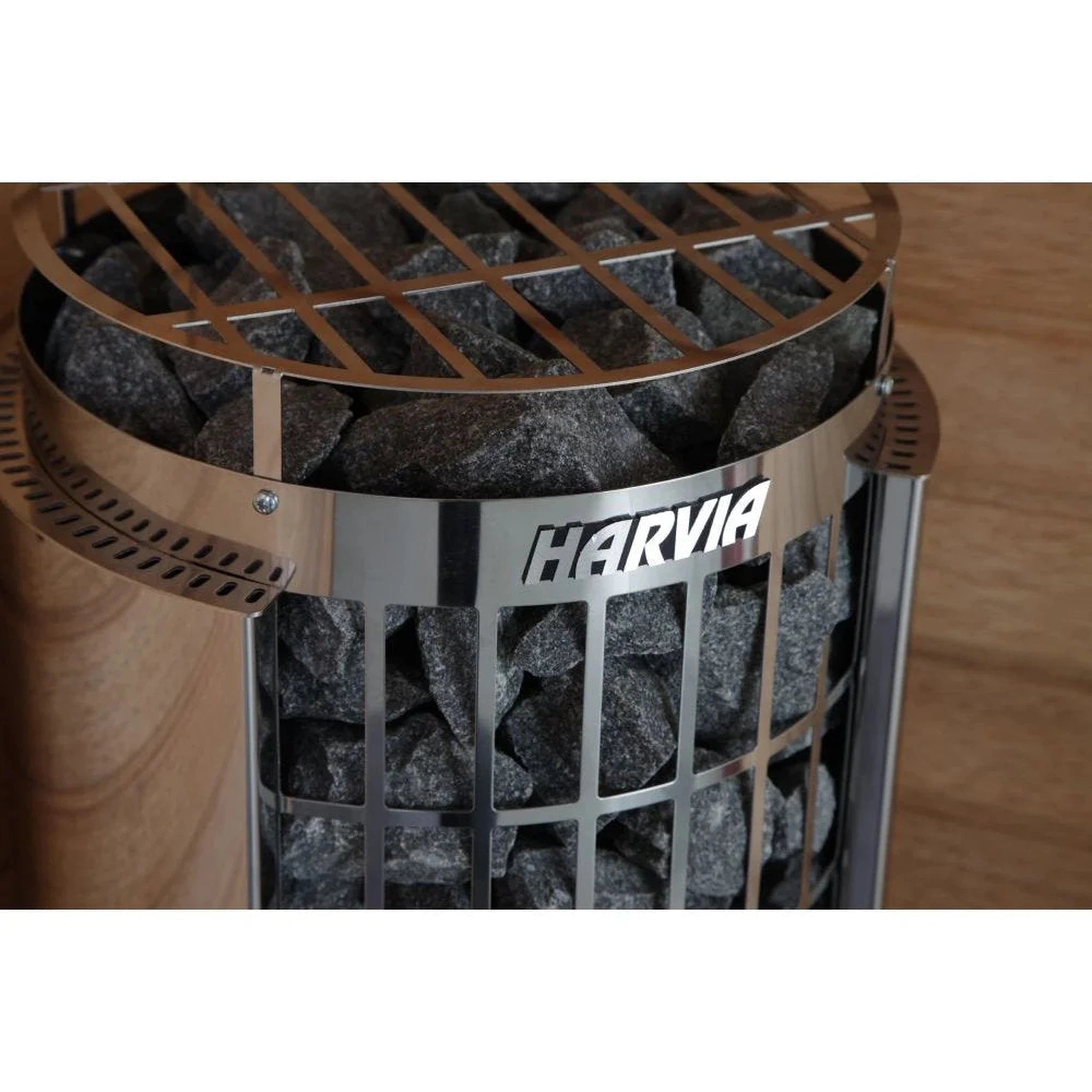

The Harvia Cilindro PC60 electric heater contains a massive amount of stones. Thanks to the grate-like outer shell, each bather can adjust the nature of the steam: soft when throwing water onto the side of the heater and sharp when throwing water straight on top of the stone pillar. Cilindro is impressive to both look at and experience.
The Harvia Cilindro PC60 sauna heating unit required Xenio control for operation is sold separately.
Features

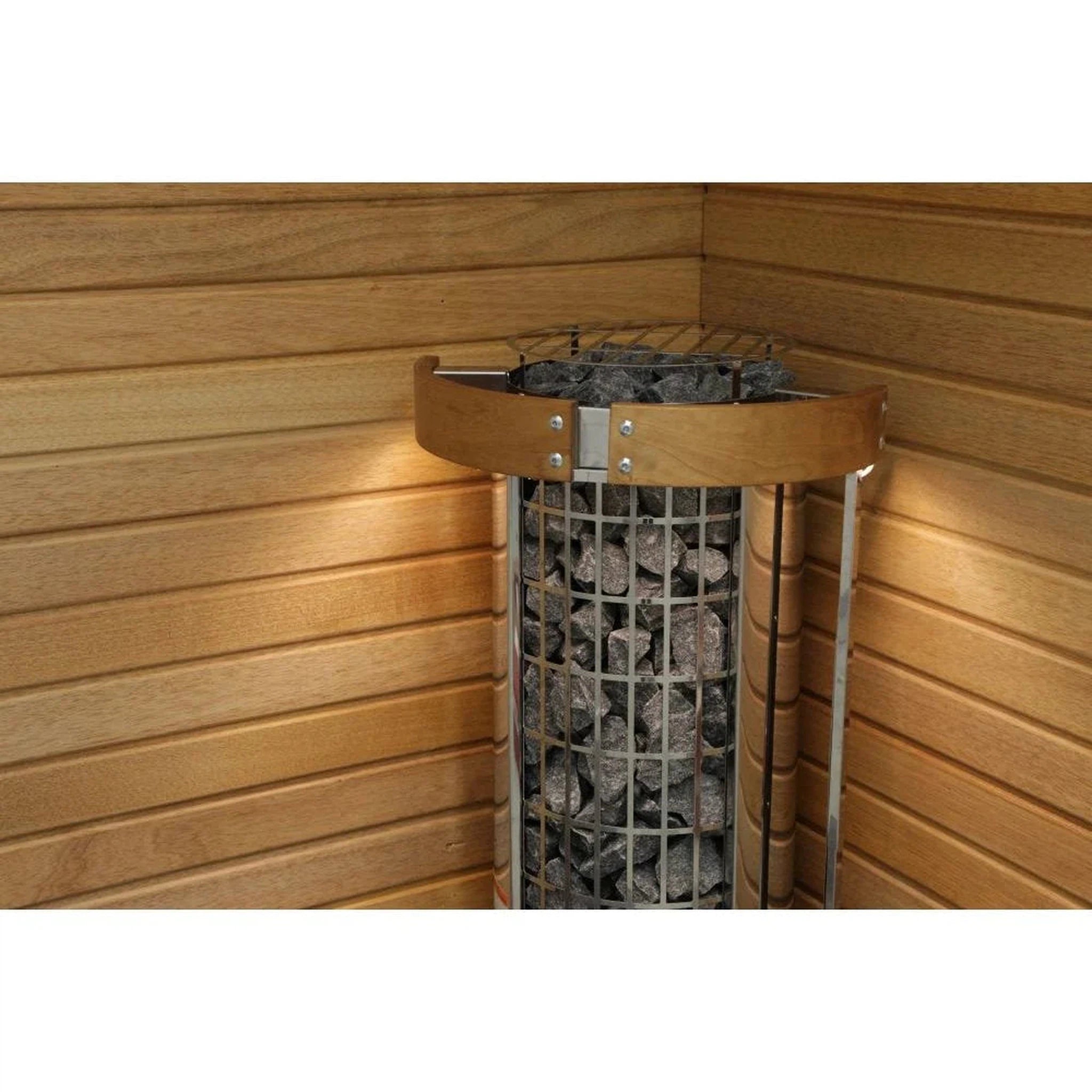

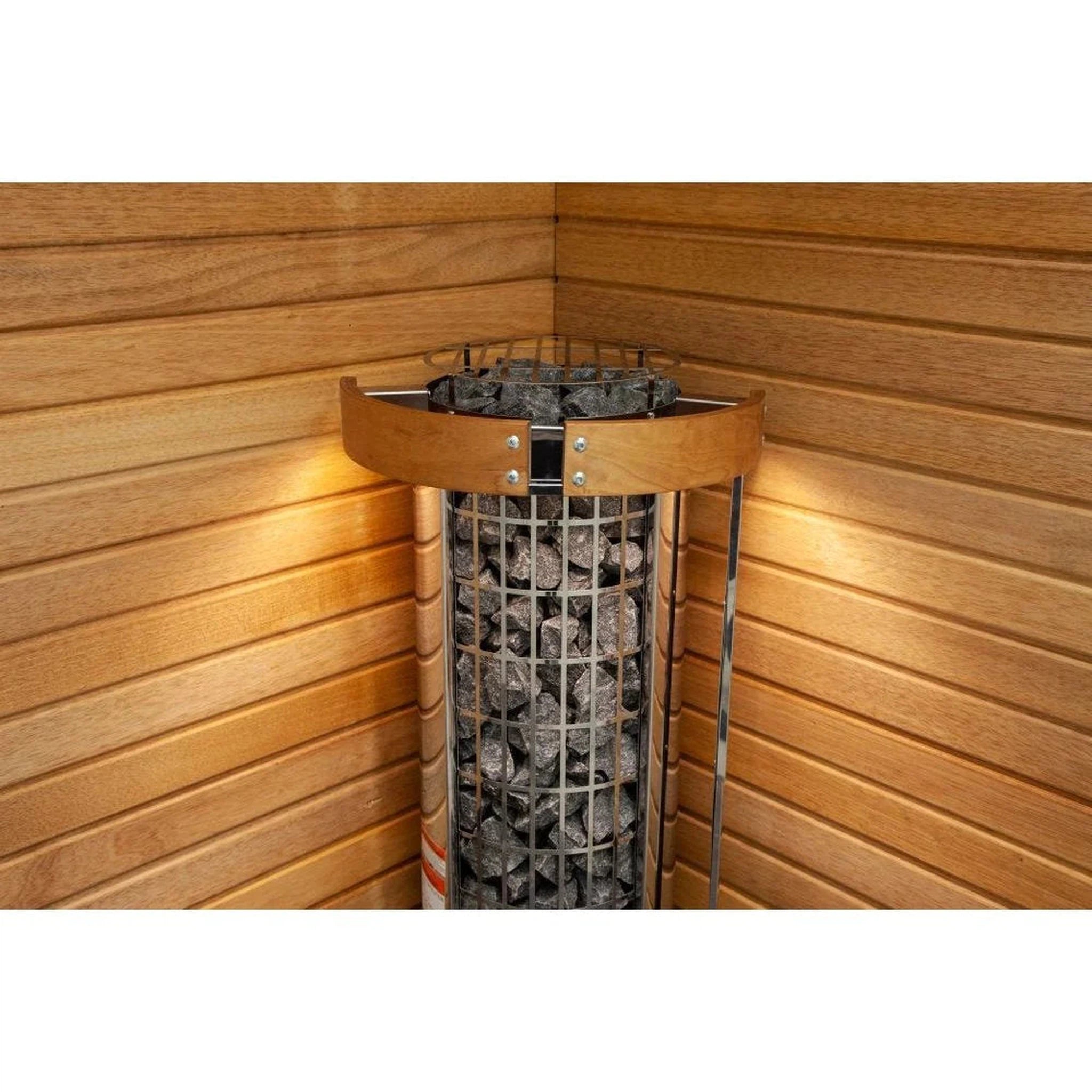

- Side-wall or corner of room install
- Stainless Stee construction
- 6kW
- For sauna rooms from 141 to 294 cu. ft.
- Requires a minimum of 200lbs of stones (5 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Built-In controls
- Stainless Steel elements
- Direct rock-to-heating element contact
- Industrial grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Dimensions: 14"W (355mm) x 13"D (330mm) x 40"H (1016mm)
- 2-Year Warranty (Consumer Use)
-
Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Includes
- Sauna heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
Specifications
Dimensions
| ART NUMBER | PRODUCT WEIGHT | LENGTH/WIDTH | WIDTH/DEPTH | HEIGHT | DIAMETER | DIMENSIONS |
| HPCS6U1HB | 38 lbs | 14" | 13" | 40" | N/A |
14"W x 13"D x 40"H
|
| HPCS8U1HB | 38 lbs | 14" | 13" | 40" | N/A |
14"W x 13"D x 40"H
|
| HPCS9U1HB | 38 lbs | 14" | 13" | 40" | N/A |
14"W x 13"D x 40"H
|
Harvia Cilindro PC60
| Model | Cilindro PC60 |
|---|---|
| Kilowatt Rating (KW) | 6 KW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 141 |
| Maximum Adjusted Cubic Feet | 294 |
| Voltage | 240 |
| Phase | 1 |
| Nominal Amps | 25 Amps |
| Heater Weight | 37.5 lbs |
| Shipping Weight with Sauna Stones | 257.5 lbs |
| Width In Inches | 14" (355mm) |
| Depth In Inches | 13" (330mm) |
| Height In Inches | 40" (1016mm) |
Harvia Cilindro PC80
| Model | Cilindro PC80 |
|---|---|
| Kilowatt Rating (KW) | 8 KW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 141 |
| Maximum Adjusted Cubic Feet | 431 |
| Voltage | 240 |
| Phase | 1 |
| Nominal Amps | 33.4 Amps |
| Heater Weight | 37.5 lbs |
| Shipping Weight with Sauna Stones | 257.5 lbs |
| Width In Inches | 14" (355mm) |
| Depth In Inches | 13" (330mm) |
| Height In Inches | 40" (1016mm) |
Harvia Cilindro PC90
| Model | Cilindro PC90 |
|---|---|
| Kilowatt Rating (KW) | 9 KW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 141 |
| Maximum Adjusted Cubic Feet | 494 |
| Voltage | 240 |
| Phase | 1 |
| Nominal Amps | 37.5 Amps |
| Heater Weight | 37.5 lbs |
| Shipping Weight with Sauna Stones | 257.5 lbs |
| Width In Inches | 16" (355mm) |
| Depth In Inches | 15" (330mm) |
| Height In Inches | 45" (1016mm) |
Add-Ons
The following item is necessary to operate the heater:
- Sauna Stones
These items are optional:
- Safety Railing (to protect from contacting the hot surface of the heater)
Users Manual
