Description

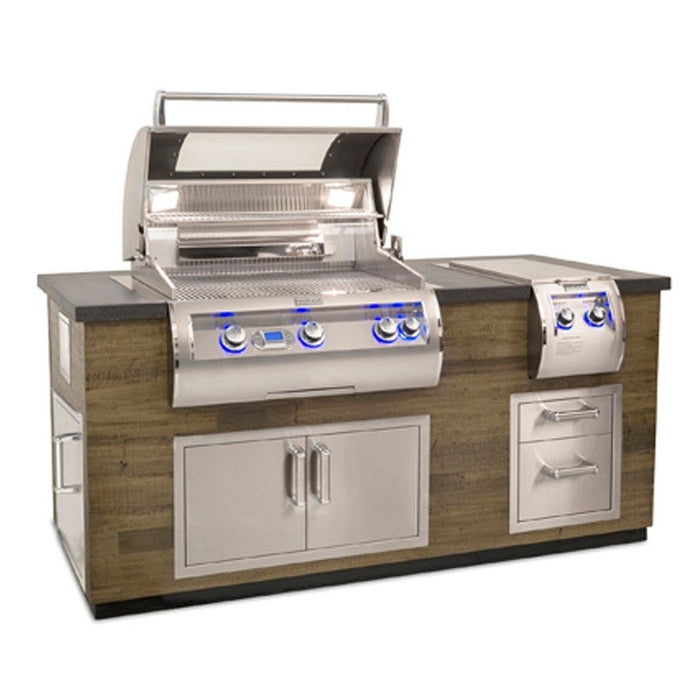

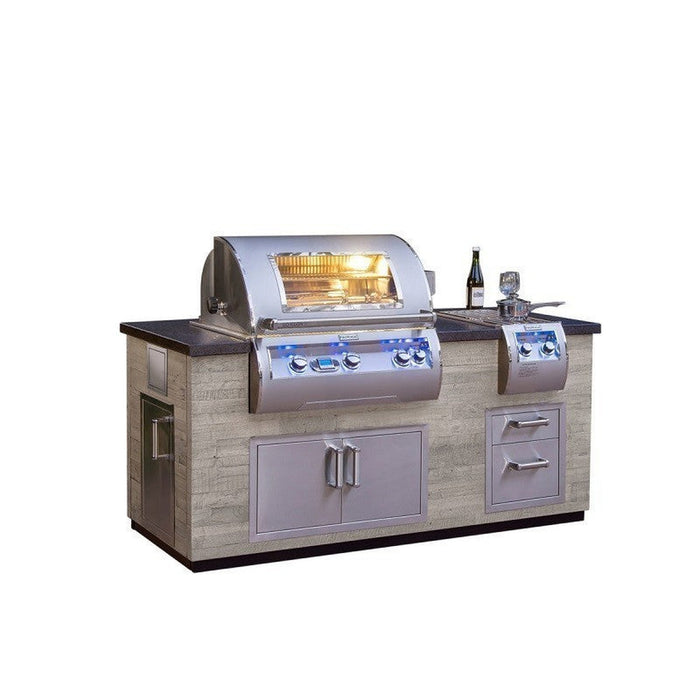

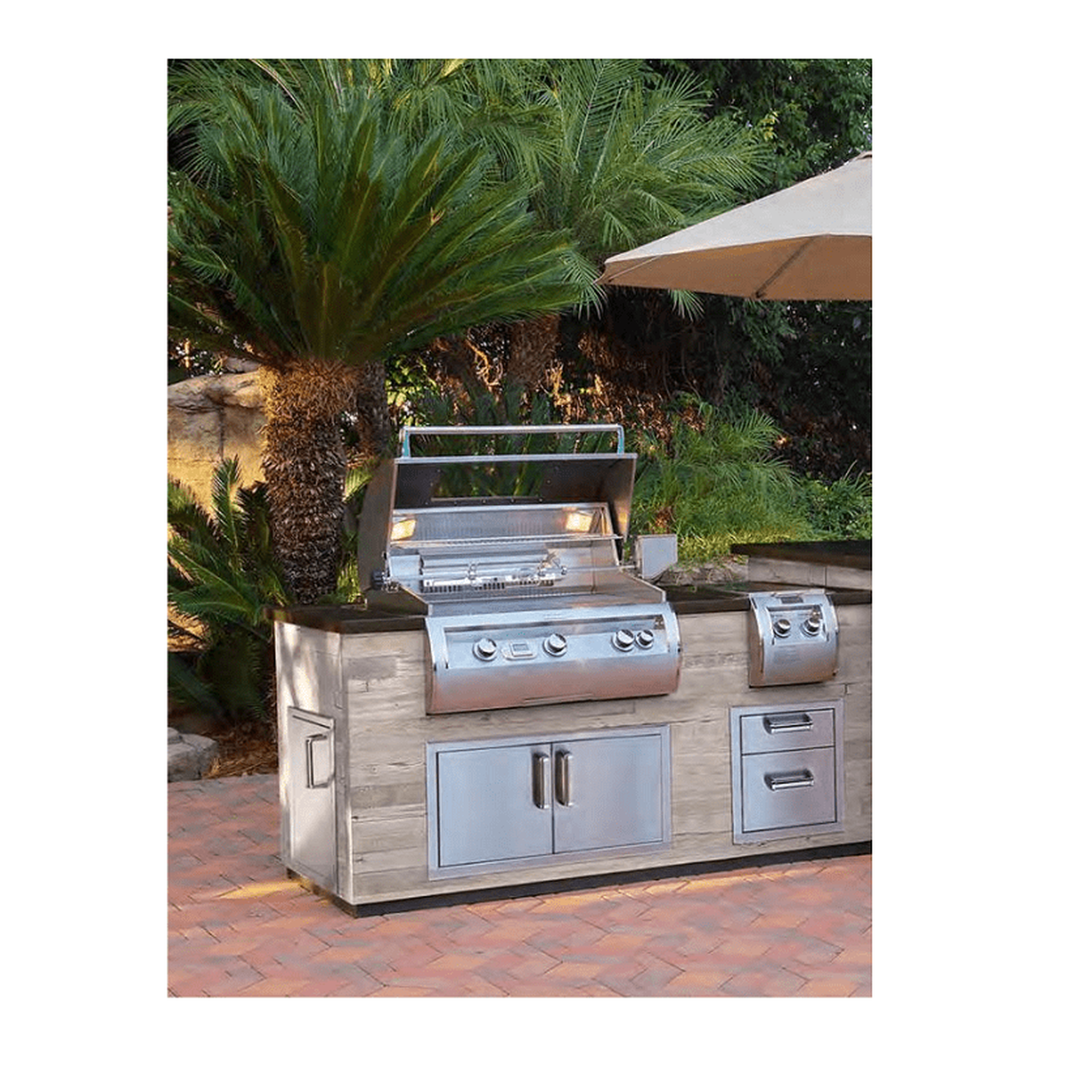

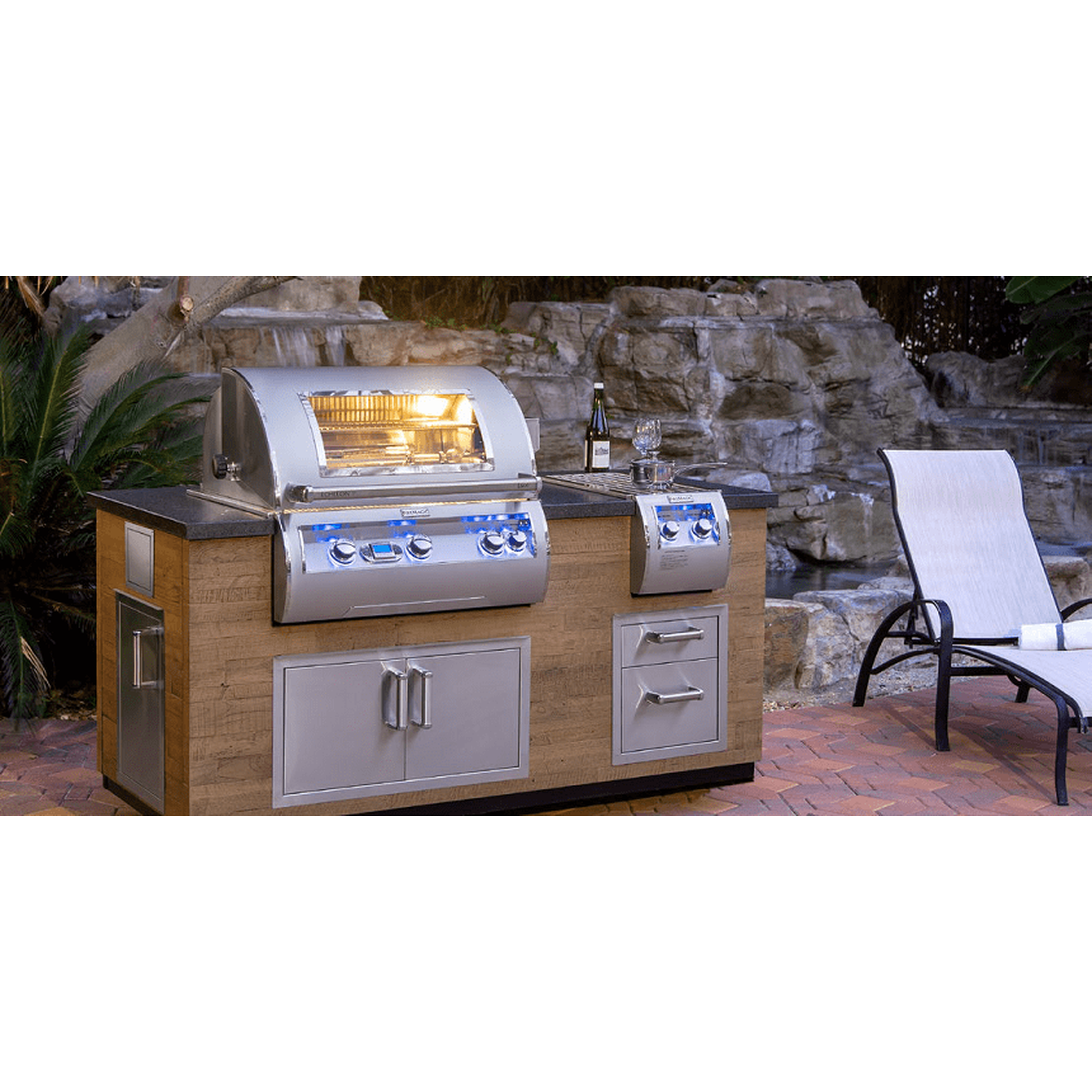

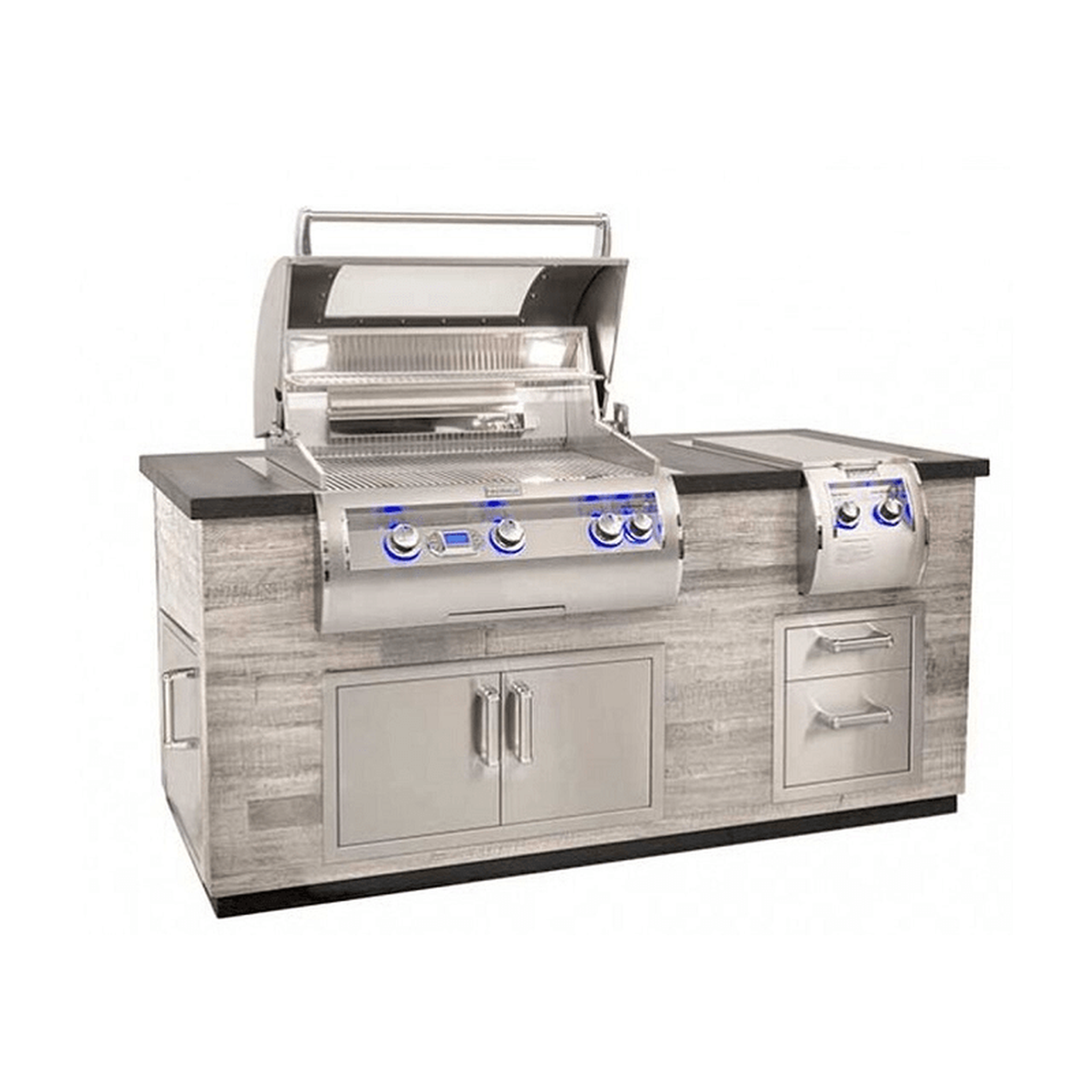

Fire Magic Grills Reclaimed Wood Island System
Fire Magic Island Systems from " Reclaimed Wood" series feature a “Reclaimed Wood Inchstyle French Barrel Oak (FO) or new weathered look Silver Pine (SP) base finishes with Polished Black Lava counter tops.
Required Components that Sold Separately:
- E660i or A660i - 30 Inch Built-in grill or E660i Gourmet Griddle
- 32815 or 32817 - Double side burner
- 53802SC - Double Drawer
- 53934SC - Double Door
- 53820SC-TL (-TR) - Single access door with tank tray and louvers or 53920SC-R (-L) - Single access door or 53820TSC - Trash cabinet
- 5520-11T (1-hr) or 5520-13T (3-hr) - Stainless Steel Timer Box
Features
E660i Echelon 30 Inch Built-In Grill Features
- Heavy duty, patented Diamond Sear cooking grids
- Cast stainless steel “E Inchburners
- Heavy gauge stainless steel dual position, adjustable warming rack
- Heavy gauge all stainless steel Zone Flavor Grids
- Push-to-Light Hot Surface Electric Ignition system w/ flash tubes
- Angled halogen 12 Volt internal oven lamps
- Contoured control panel w/ bright polished trim and polished, back-lit knobs
- Digital chrome meat and grill thermometer in control panel or angled analog
- thermometer in lid measuring up to 1000º F
- Seamless double wall 90º hood with feather-lite easy Lift Lid
- Recessed high efficiency stainless steel foam rotisserie Quantum Backburner
- Primary cooking surface: 30 x 22 Inch(660 sq. in.)
- Warming rack surface: 30 x 8 Inch(288 sq. in.)
- Main burners: 75,000 BTU’s
- Backburner: 11,000 BTU’s
- Cut-out dimensions: 31-1/4 W x 23-1/2 D x 11-1/2 H
A660i Aurora 30 Inch Built-In Grill Features
- Primary cooking surface: 30 x 22 Inch(660 sq. in.)
- Warming rack surface: 30 x 8 Inch(240 sq. in.)
- Main burners: 75,000 BTU’s
- Backburner: 18,000 BTU’s
- Cut-out dimensions: 31-1/4 W x 23-1/2 D x 11-1/2 H
E660i Echelon Gourmet Built-In Griddle Features
- Cooking Surface: 30 x 18 Inch(540 sq. in.)
- Main Burners: 45,000 BTU’s
- Cut-out Dimensions: 31-1/4 W x 23-1/2 D x 11-1/2 H
32815 Echelon Double Side Burner Features
- Burners: 30,000 BTU’s (15,000 x 2)
- Cut-out: 11-1/2 W x 22-3/4 D x 11-1/2 H
- Enjoy precise flame control on each burner to prepare side dishes and sauces for your meal (Two [2] 15,000 BTU’s burners).
32817 Aurora Double Side Burner Features
- Burners: 30,000 BTU’s (15,000 x 2)
- Cut-out: 11-1/2 W x 22-3/4 D x 11-1/2 H
- The Double side burner offers precise flame control on each burner to prepare side dishes and sauces for your meal (Two 15,000 BTU’s burners).
Specifications
| UPC | 00619655075563 |
| Features | Base Island / Customizable |
| Finish | Browns / Yellows |
| Fuel Type | Gas / Propane |
| Island Material | Reclaimed Wood |
| Width | 77 |
| Height | 36.5 |
| Depth | 34.5 |
