Dimplex Opti-Myst Pro Built-In Electric Cassette

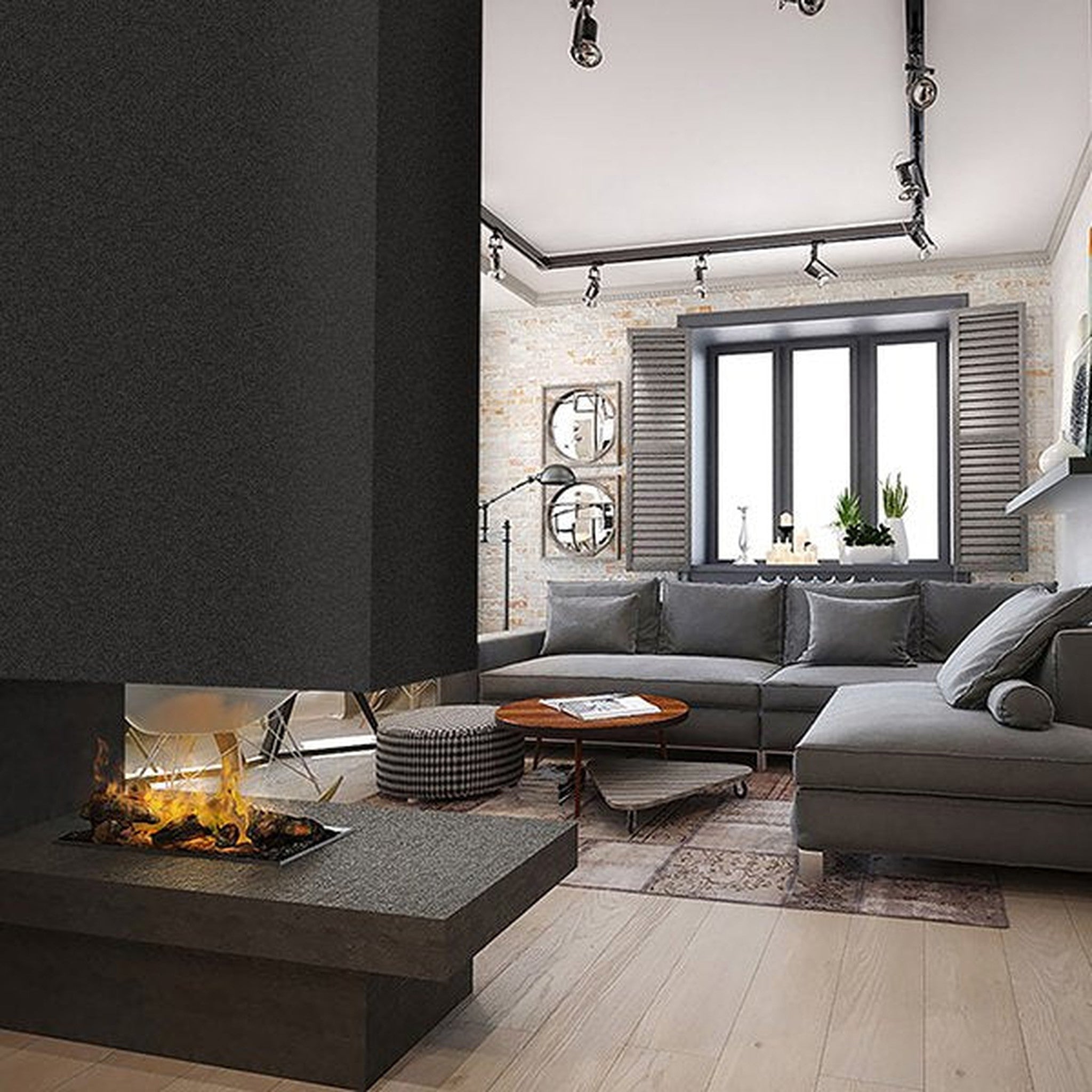

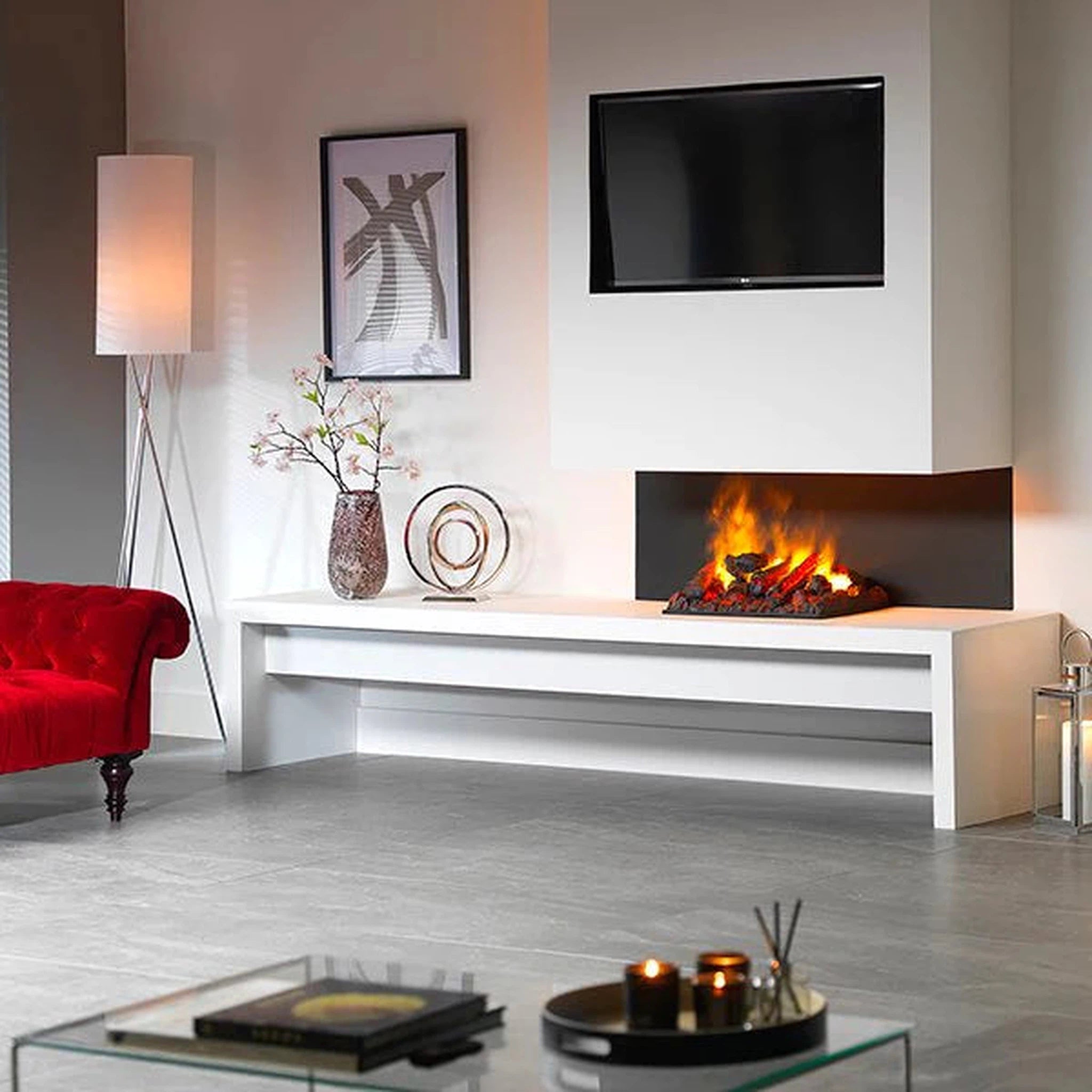

Picture the perfect fireplace: any length, any location, and any number of sides. Forget about venting, gas lines and hot glass, because they are a thing of the past. Now imagine flames made of water that you can reach out and touch. The revolutionary Opti-myst by Dimplex reinvents the electric fireplace and makes it easier than ever to add a dramatic fire feature to any space. See-through, three-sided, open concept, the possibilities are endless, so go ahead, play with fire.
Features
- The Opti-myst flame effect uses revolutionary ultrasonic technology to produce a fine mist that creates the lifelike illusion of flames and smoke.
- Get creative with the modular design and combine multiple 20" (50.8 cm) CDFI500-PRO and 40" (101.8 cm) CDFI1000-PRO cassettes to achieve the desired length for dramatic linear installations impossible to achieve with gas fires.
- Have some fun and change up your customizable flame width by adding the included spacers and slots to your Opti-myst cassette.
- You have the option of using a continuous water supply when you purchase the additional plumbed water supply kit sold separately (CDFIPLUMB-KIT, works with copper piping). This is recommended for a seamless look and to avoid refilling the water tank.
Specifications

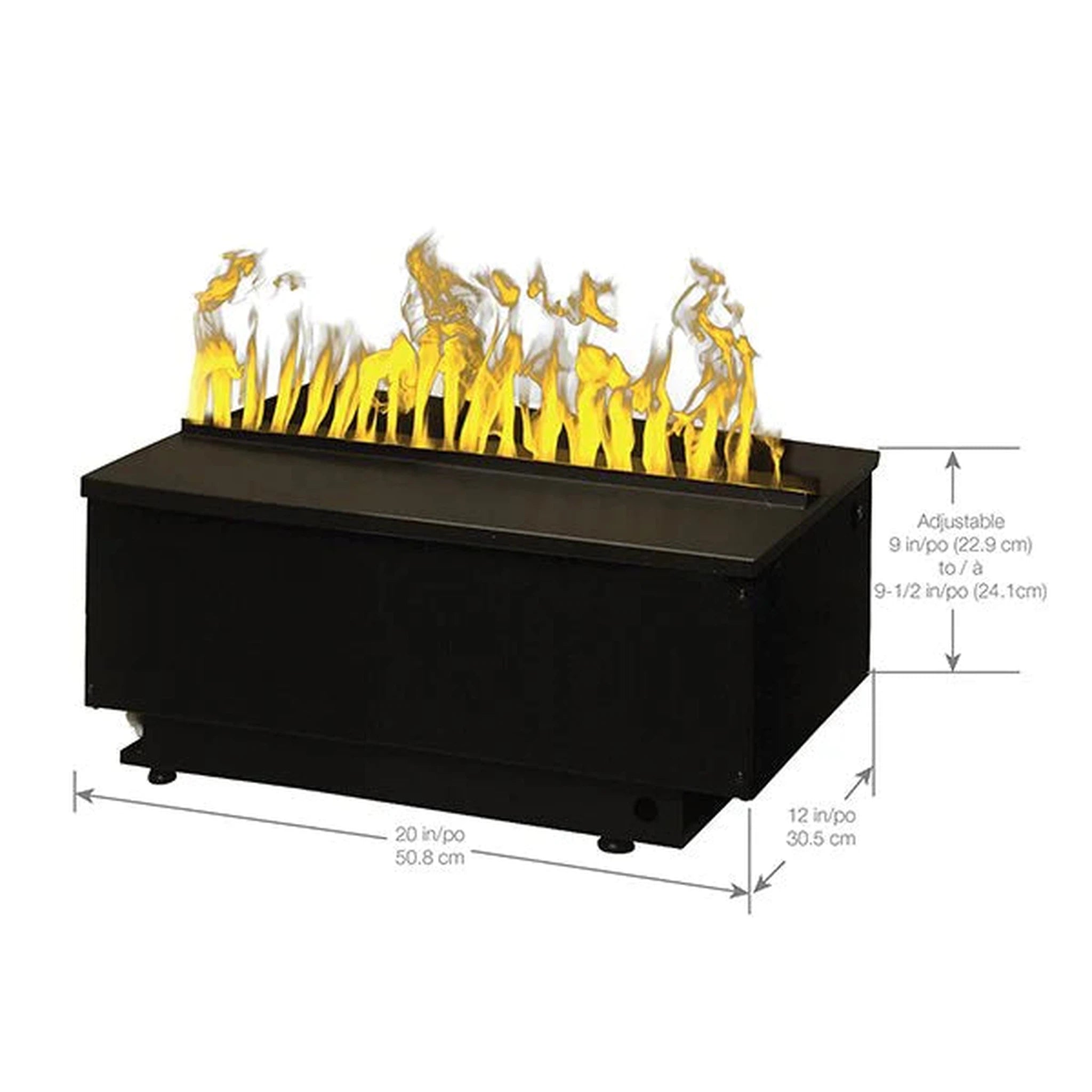

Opti-Myst Pro 500 Built-In Electric Cassette
- Product Finish Black
- Wattage 230W
- Voltage 120 V
- BTU 785
- Product Height (in) 9.5
- Product Depth/Length (cm) 30.48
- Product Width(cm) 50.8
- Product Height (cm) 24.13
- Product Weight (kg) 1.81
- Remote Control Yes
- Automatic Shut-Off Yes
- Power Source Electric
- Warranty 2 Yr Limited
- Product Width(in) 20
Opti-Myst Pro 1000 Built-In Electric Cassette
- Product Finish Black
- Wattage 1460W
- Voltage 120V
- BTU 4981
- Product Height (in) 9.63
- Product Depth/Length (cm) 30.33
- Product Width(cm) 101.8
- Product Height (cm) 24.46
- Product Weight (kg) 31.19
- Remote Control Yes
- Built-in Thermostat No
- Automatic Shut-Off Yes
- Power Source Electric
- Warranty 2 Yr Limited
- Product Width(in) 40
