Description

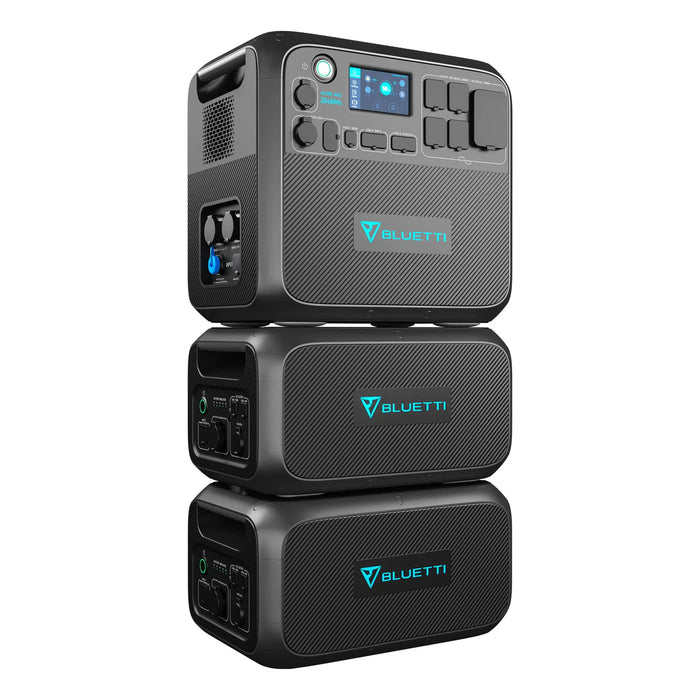

BLUETTI Home Battery Backup | AC200MAX + 2*B230
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Features
- SMALL CHANGE, HUGE LEAP

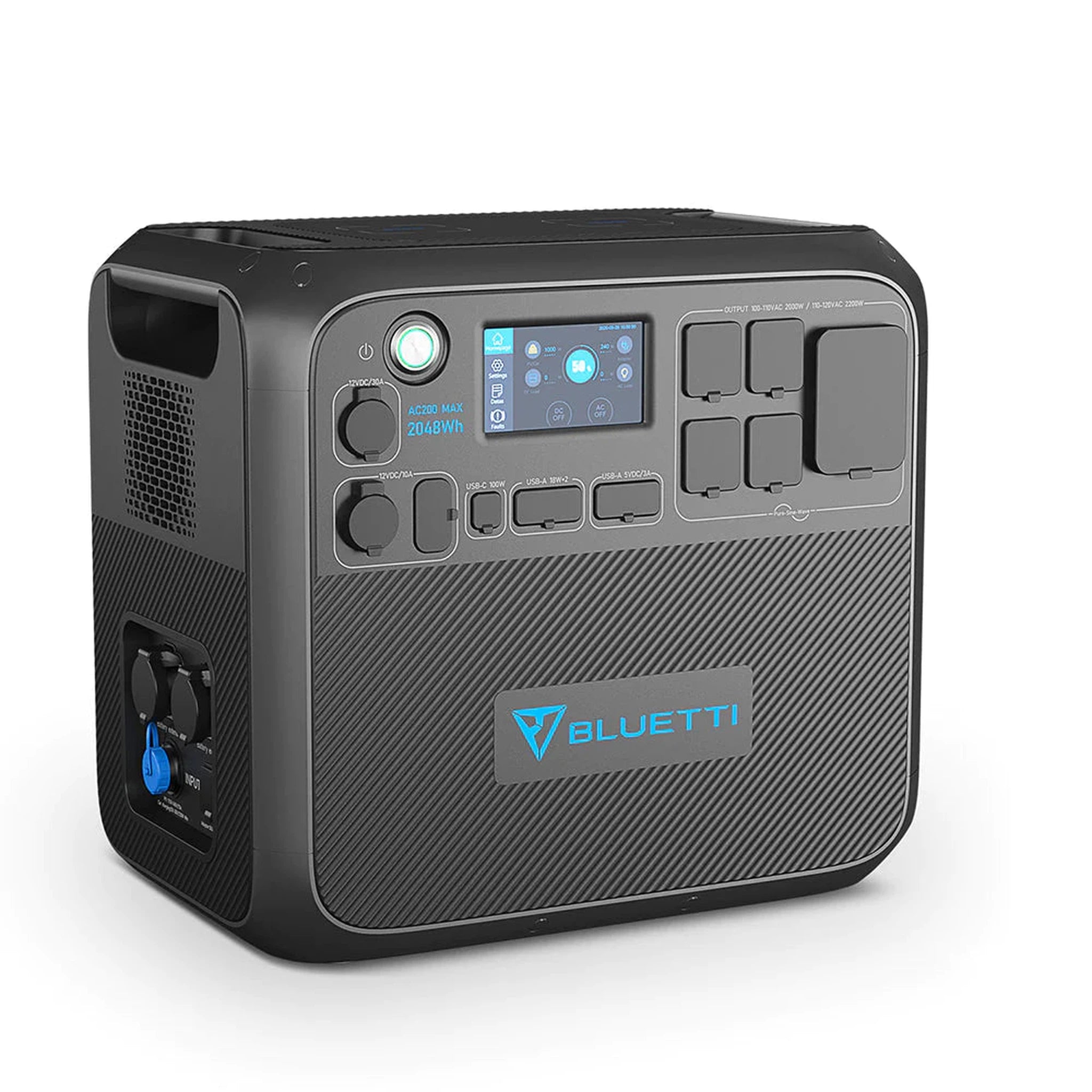

The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.
- LESS TO SPEND, MORE TO LOVE

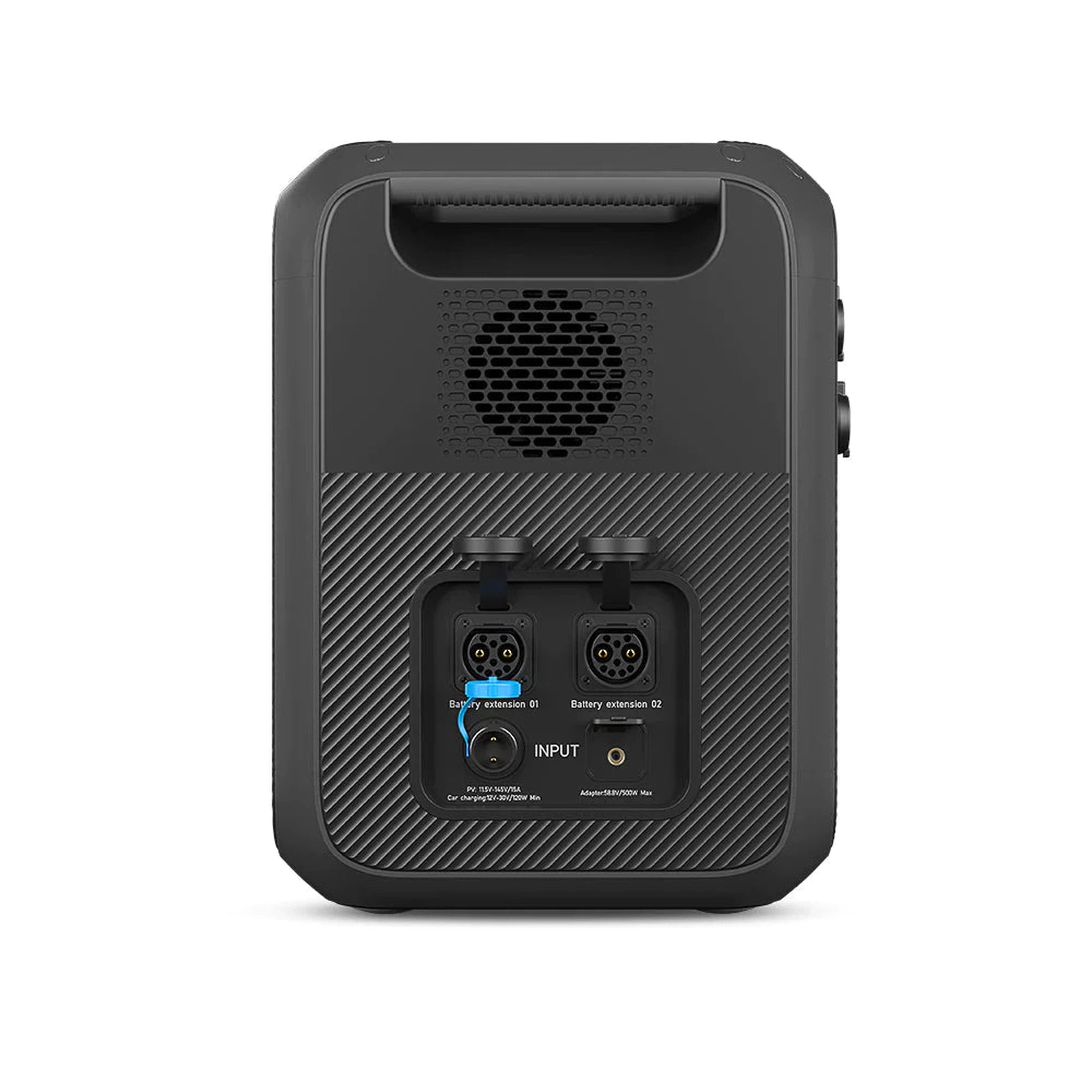

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
- GET CHARGED IN ANYWAY YOU PREFER
The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every Bluetti battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
- INCOMPARABLE OUTLET VERSATILITY

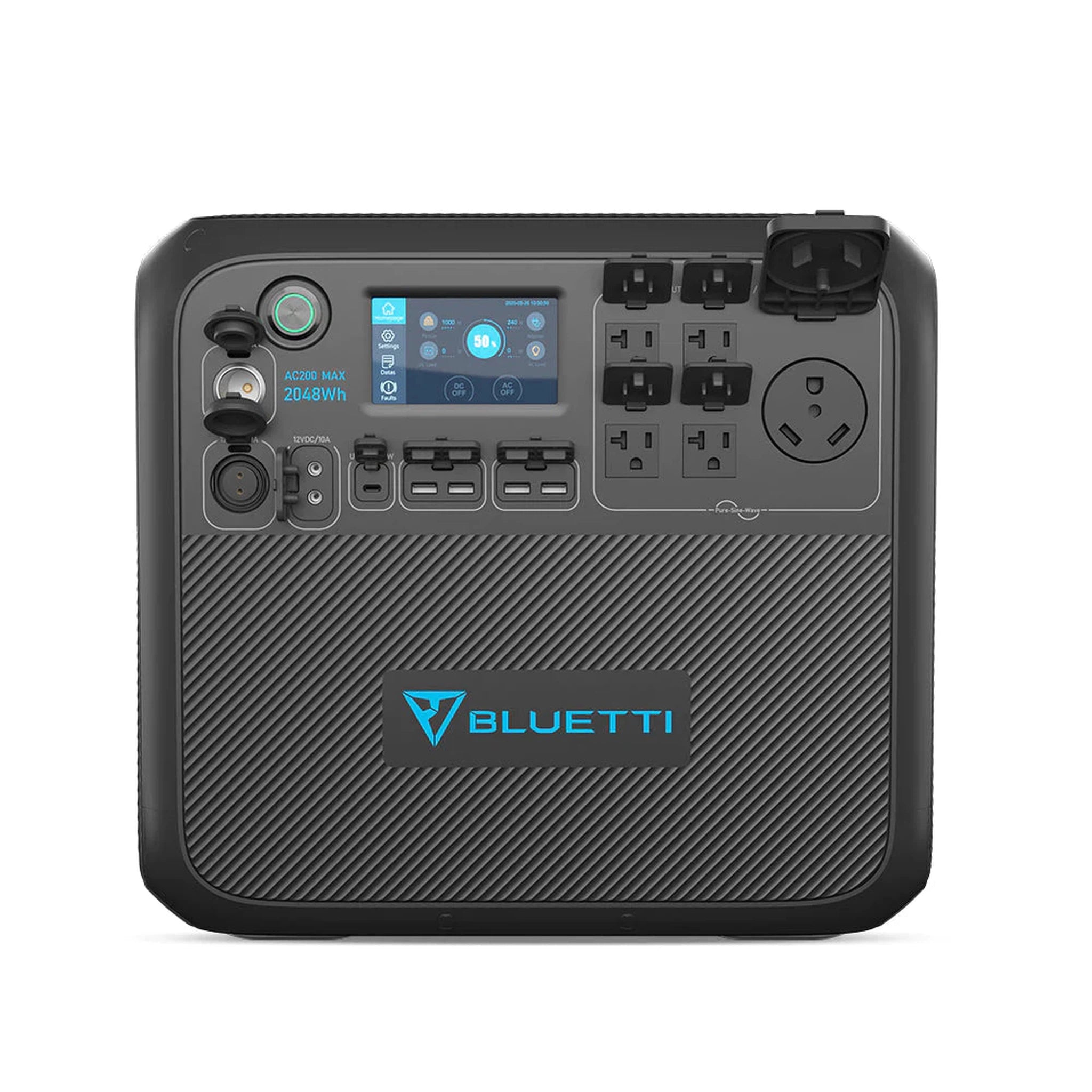

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
- Never Run Out of Power
Suitable for various occasions
Specifications
| AC200MAX | ||
|---|---|---|
| BATTERY INFO | Capacity | 2,048Wh (51.2V, 40Ah) |
| Type | LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles | 3,500+ Cycles to 80% Original Capacity | |
| Shelf-life | Recharge to 80% Every 3-6 Months | |
| Management System | MPPT Controller, BMS, etc | |
| OUTPUT | AC Outlets | 4 x 120V/20A Outlets |
| 1 x 120V/30A NEMA TT-30 | ||
| 2200W In Total | ||
| Inverter Type | Pure Sine Wave | |
| Surge Power | 4800W | |
| USB-C Port | 1 x 100W Max. | |
| USB-A Port | 2 x 5V/3A USB-A | |
| 2 x 18W USB-A | ||
| 12V DC Outlets | 1 x 12V/30A (RV Outlet) | |
| 1 x 12V/10A (Car Outlet) | ||
| 2 x 12V/10A DC 5521 (5.5mm Outlet) | ||
| *All Regulated. | ||
| Wireless Charging Pad | 2 x 15W Max. (For Each) | |
| INPUT | AC Adapter Input | 500W. |
| Solar Input | 900W Max., VOC 10-145VDC, 15A | |
| Car Input | 12/24V from Cigarette Lighter Port | |
| Max Input | 1,400W, with AC+Solar Input | |
| RECHARGE TIMES | AC Adapter (400W) | ≈5.5~6 Hours |
| Solar (900W) | ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) | |
| 12V/24V Car Outlet (100W/200W) | ≈10 or 20 Hours | |
| AC Adapter + Solar (1300W) | ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) | |
| Dual AC Adapters (800W) | ≈3~3.5 Hours (Extra adapter is REQUIRED) | |
| GENERAL | 240V Split Phase Bonding | No. Need 240V power source? Explore here. |
| Scalability | Expandable w/ Up to 2 x B230 or 2 x B300 | |
| Pass-through Charging | Yes | |
| Weight | 61.9lbs (28.1kg) | |
| Dimensions (LxWxD) | 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm) | |
| Operating Temperature | -4-104℉ (-20-40℃) | |
| Storage Temperature | 14-113℉ (-10-45℃) | |
| Certifications | UL Standard, CEC, DOE, FCC, CA Prop 65 | |
| Warranty | 48 Months (Learn more about BLUETTI warranty policy) | |

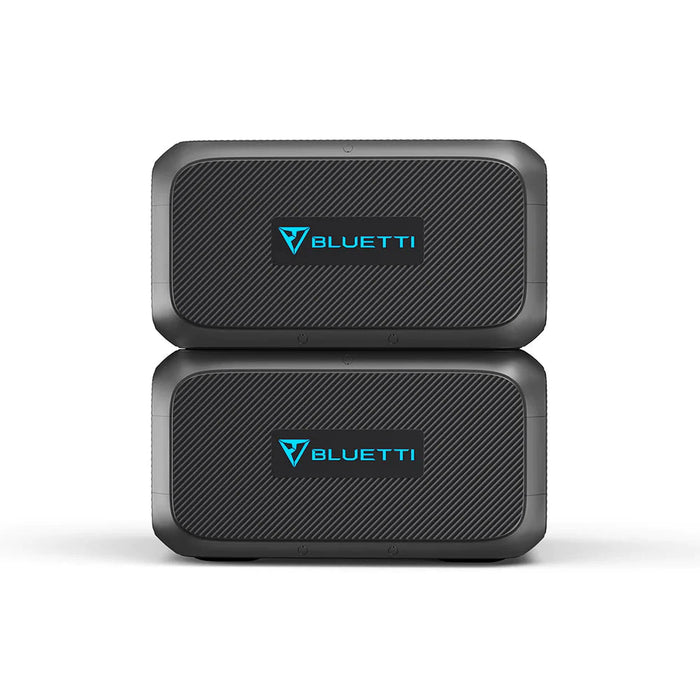

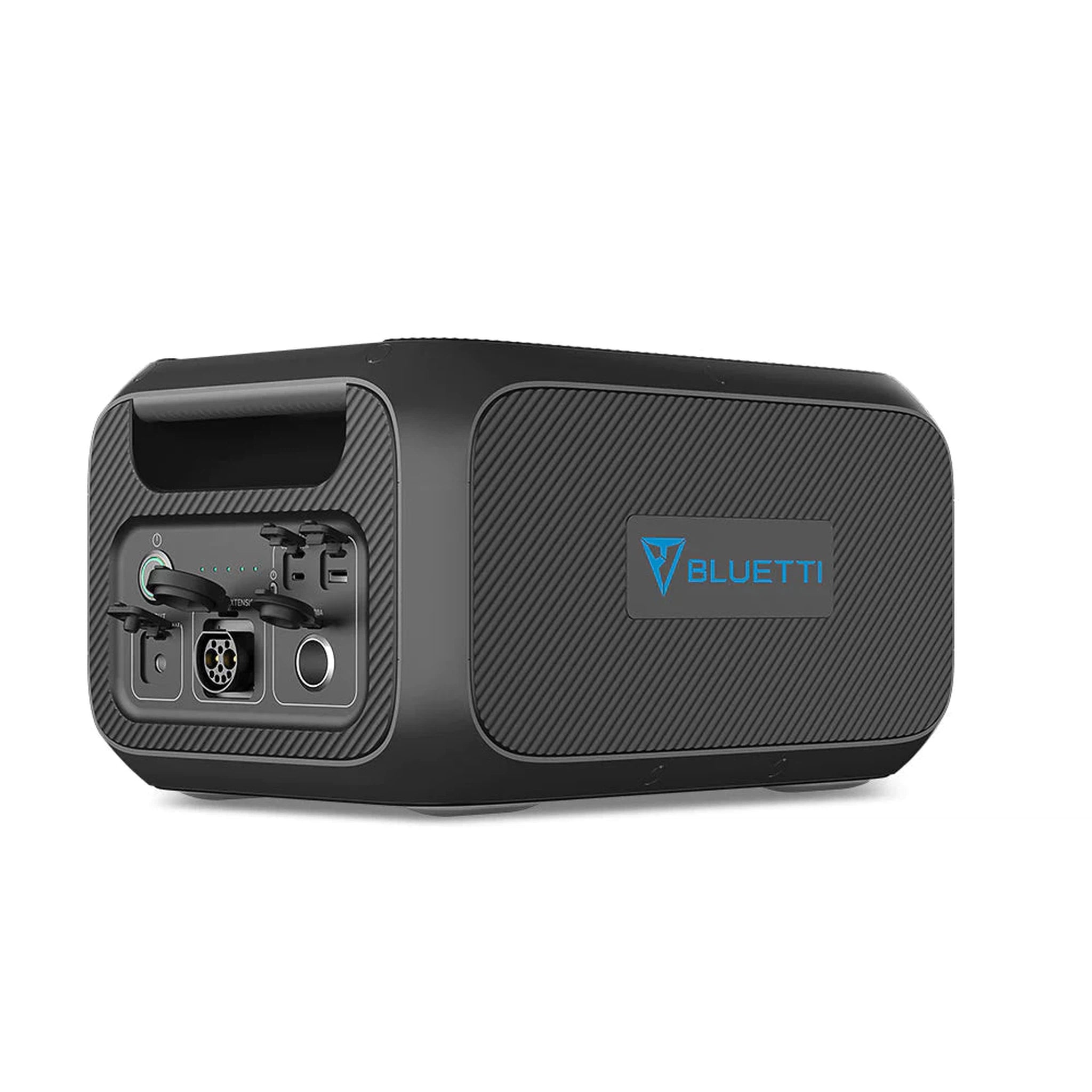

| 2*B230 | ||
| BATTERY INFO | Capacity: | 3,072Wh (51.2V, 60Ah) |
| Type: | LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles: | 3500+ Cycles to 80% Original Capacity | |
| Shelf-life: | Recharge to 80% Every 3-6 Months | |
| Management System: | MPPT Controller, BMS, etc. | |
| OUTPUT | USB-C Port: | 1 x 100W Max. |
| USB-A Port: | 1 x 18W USB-A | |
| 12V DC Outlet*: | 1 x 12V/10A (Car Outlet) | |
| *All Regulated. | ||
| INPUT | AC Input: | 500W Max. |
| Solar Input: | 200W Max., VOC 12-60VDC, 10A | |
| Car Input: | 12/24V from Cigarette Lighter Port | |
| Max Input: | 700W, With AC Adatper + Solar Input Simultaneously | |
| RECHARGE TIME | AC: | ≈ 6.5~7 Hours at 500W |
| Solar: | ≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature) | |
| 12V/24V Car Outlet (100W/200W: | ≈ 30 or 15 Hours | |
| AC + Solar: | ≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature) | |
| Solar + Solar: | ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED) | |
| Dual AC: | ≈ 5 Hours at 700W (Extra adapter REQUIRED) | |
| GENERAL | 240V Split Phase Bonding: | Yes, work with AC300 |
| Pass-through Charge: | Yes | |
| Weight: | 79.6lbs (36.1kg) | |
| Dimensions (LxWxD): | 20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm) | |
| Operating Temperature: | -4-104℉ (-20-40℃) | |
| Storage Temperature: | -4-104℉ (-20-40℃) | |
| Certifications: | UL Standard, CEC, DOE, FCC, CA Prop 65 | |
| Warranty: | 48 Months (Enter to learn more about BLUETTI warranty policy) | |
